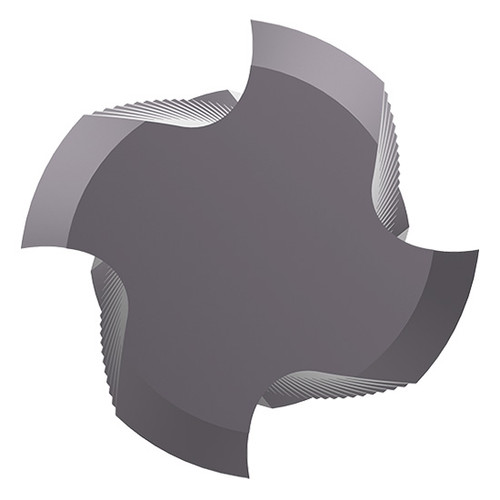

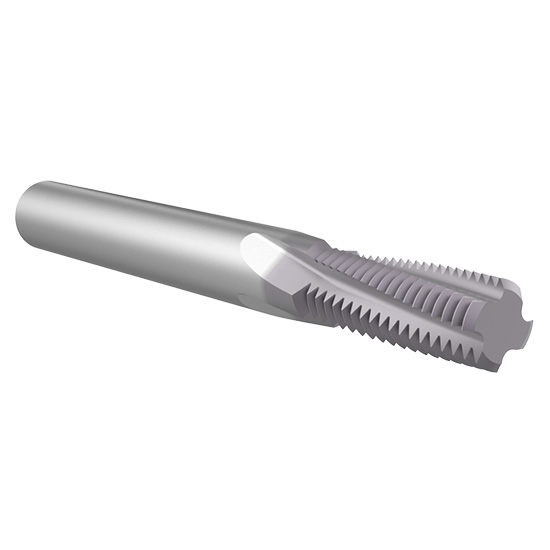

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 28
- Thread Form : UN
Product Specifications
| #MFG | TM19028M |
| Thread Size (Inch) | #10 |
| Cutter Diameter (Inch) | 5/32" |
| Cutter Diameter (Decimal Inch) | 0.1496" |
| Cutter Diameter (mm) | 3.80mm |
| Pitch (Inch) | 1-7/64" |
| Pitch (Decimal Inch) | 1.1000" |
| Pitch (mm) | 28.00mm |
| Shank Diameter (Inch) | 5/32" |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Inch) | 21/64" |
| Length of Cut (Decimal Inch) | 0.3228" |
| Length of Cut (mm) | 8.20mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
