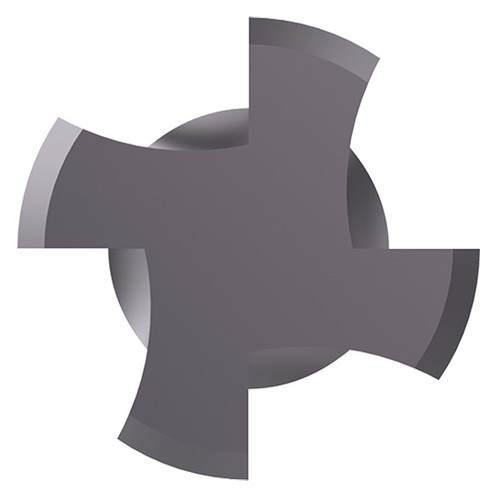

The treadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
Product Specifications
| # MFG | TM20040 |
| Thread Size (mm) | M2 |
| Cutter Diameter (Inch) | 1/16" |
| Cutter Diameter (Decimal Inch) | 0.0590" |
| Cutter Diameter (mm) | 9.91mm |
| Pitch (Inch) | 1/64" |
| Pitch (Decimal Inch) | 0.0200" |
| Pitch (mm) | 0.40mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (Decimal Inch) | 0.1260" |
| Length of Cut (mm) | 3.20mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
