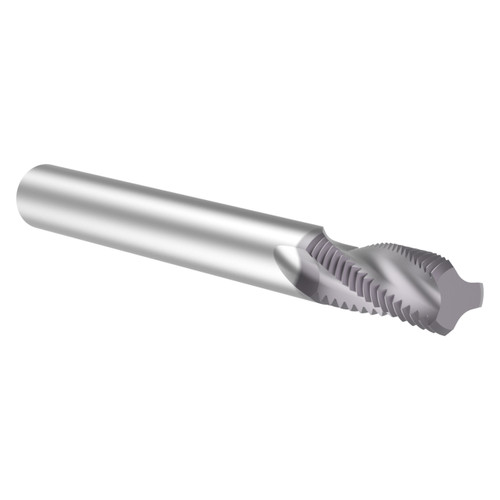

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 27
- Thread Form : NPS
Product Specifications
| #MFG | TM27NPSM |
| Thread Size (Inch) | 1/16" and 1/8" |
| Thread Size (Decimal Inch) | 0.0600" and 0.1300" |
| Thread Size (mm) | 1.59mm and 3.18mm |
| Cutter Diameter (Inch) | 15/64" |
| Cutter Diameter (Decimal Inch) | 0.2343" |
| Cutter Diameter (mm) | 5.95mm |
| Pitch (Inch) | 1-1/16" |
| Pitch (Decimal Inch) | 1.0600" |
| Pitch (mm) | 27.00mm |
| Shank Diameter (Inch) | 15/64" |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6299" |
| Length of Cut (mm) | 16.00mm |
| Number of Flutes | 3 |
| Thread Type | Internal |
| Finish/Coating | TiAlN |
| Material | Carbide |
