Features:
- Thread Per Inch :18

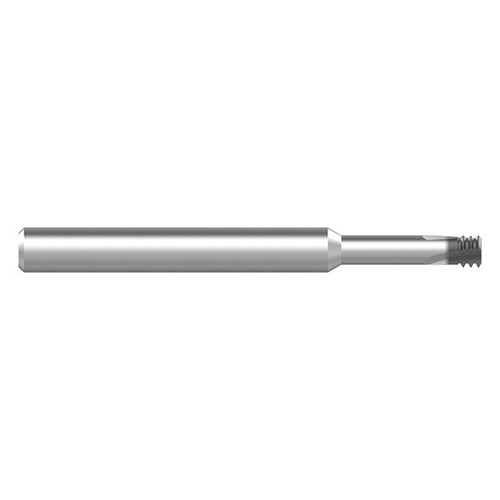

Product Specifications
| # MFG | TM31218-3T3X |
| Cutter Diameter (Inch) | 0.236" |
| Length of Cut (Inch) | 0.91" |
| Overall Length (Inch) | 2.5" |
| Shank Diameter (Inch) | 0.25" |
| Minimum Thread Size | 5/16" |
| Number of Flutes | 3 |
| Pitch | 18 |
| Cutting Direction | Left Hand (M04) |
| Depth to Diameter | 3X |
| Shank Type | Cylindrical |
| Thread Standard | UN |
| Coolant Through | No |
| Coating | AM210 |
| Material | Carbide |
| Flute Type | Helical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Mill Diameter (Decimal Inch):
0.236"
Shank Diameter (Decimal Inch):
0.25"
Length of Cut (Decimal Inch):
0.91"
Overall Length (Decimal Inch):
2.5
Number of Flutes:
3
Minimum Thread Size:
5/16
Depth to Diameter:
3X
Cutting Direction:
Left Hand
Finish/Coating:
AM210
Shank Type:
Cylindrical
Thread Style:
Internal/External
Flute Type:
Helical
Thread Standard:
UN
Pitch:
18
Through Coolant:
No
Material:
Solid Carbide
