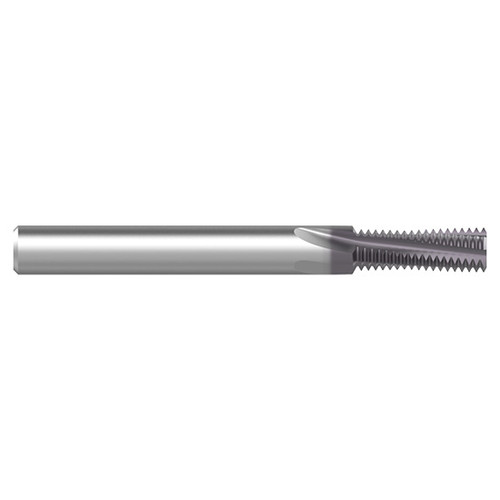

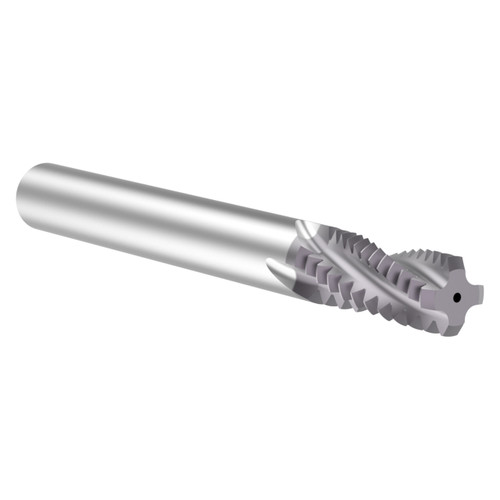

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 14
- Thread Form : UN
Product Specifications
| #MFG | TM43714CHM |
| Thread Size (Inch) | 7/16" |
| Thread Size (Decimal Inch) | 0.4375" |
| Thread Size (mm) | 11.11mm |
| Cutter Diameter (Inch) | 5/16" |
| Cutter Diameter (Decimal Inch) | 0.3051" |
| Cutter Diameter (mm) | 7.75mm |
| Pitch (Inch) | 35/64" |
| Pitch (Decimal Inch) | 0.5500" |
| Pitch (mm) | 14.00mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Inch) | 25/32" |
| Length of Cut (Decimal Inch) | 0.7874" |
| Length of Cut (mm) | 20.00mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
7/16"
Thread Size (Decimal Inch):
0.4375"
Thread Size (mm):
11.11mm
Thread Type:
Internal/External
Pitch (Inch):
35/64"
Pitch (Decimal Inch):
0.5500"
Pitch (mm):
14.00mm
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3051"
Cutter Diameter (mm):
7.75mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant:
Yes
