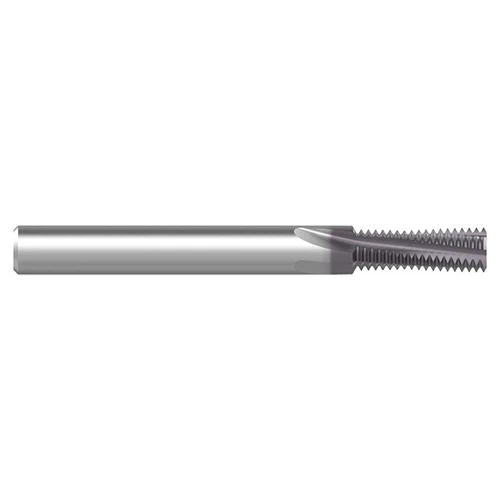

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | TM62511M-XL |
| Thread Size (Inch) | 5/8" |
| Thread Size (Decimal Inch) | 0.6250" |
| Thread Size (mm) | 15.88mm |
| Cutter Diameter (Inch) | 15/32" |
| Cutter Diameter (Decimal Inch) | 0.4705" |
| Cutter Diameter (mm) | 11.95mm |
| Pitch (Inch) | 7/16" |
| Pitch (Decimal Inch) | 0.4300" |
| Pitch (mm) | 11.00mm |
| Shank Diameter (Inch) | 15/32" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Inch) | 1-29/64" |
| Length of Cut (Decimal Inch) | 1.4567" |
| Length of Cut (mm) | 37.00mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
