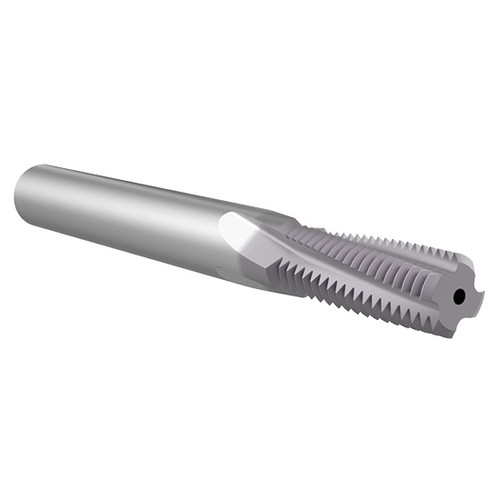

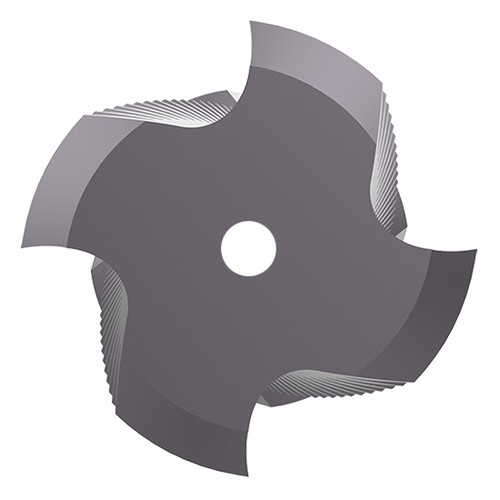

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | tm80075ch |
| Thread Size (mm) | M8 |
| Cutter Diameter (Inch) | 15/64" |
| Cutter Diameter (Decimal Inch) | 0.2350" |
| Cutter Diameter (mm) | 5.97mm |
| Pitch (Inch) | 1/32" |
| Pitch (Decimal Inch) | 0.0300" |
| Pitch (mm) | 0.75mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Number of Flutes | 3 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
