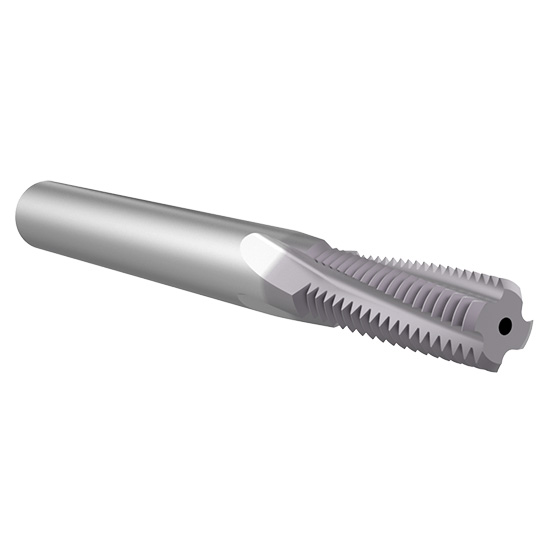

Allied Machine and Engineering TM87509M-XL | 7/8-9 UN x 15.75mm Diameter x 16.00mm Shank x 45.20mm LOC x 100.00mm OAL 4 Flute TiAlN Coated Helical Flute Thread Mill
$319.60
$300.42
Allied Machine and Engineering
Allied Machine and Engineering
Allied Machine and Engineering
Allied Machine and Engineering
Allied Machine and Engineering
The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
| #MFG | TM87509CHM-XL |
| Thread Size (Inch) | 7/8" |
| Thread Size (Decimal Inch) | 0.8750" |
| Thread Size (mm) | 22.23mm |
| Cutter Diameter (Inch) | 5/8" |
| Cutter Diameter (Decimal Inch) | 0.6201" |
| Cutter Diameter (mm) | 15.75mm |
| Pitch (Inch) | 23/64" |
| Pitch (Decimal Inch) | 0.3500" |
| Pitch (mm) | 9.00mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Inch) | 1-25/32" |
| Length of Cut (Decimal Inch) | 1.7795" |
| Length of Cut (mm) | 45.20mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
