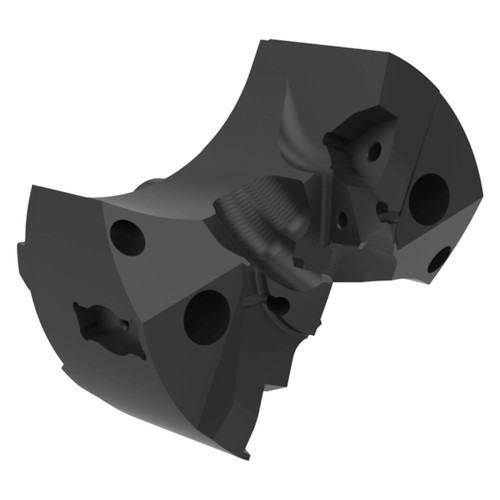

The tool uses various heads that determine the cutting diameter. There are 10 series to cover the diameter range from 1.500-4.000" (38.00 - 101.6mm). Heads use a GEN3SYS or T-A pilot insert to stabilize the tool through the cut.
Features:
- The heads offer balanced, double-effective cutting up to 2.755" (69.99mm) diameter
- This allows for maximum feed rates in these sizes
- For diameters from 2.756 to 4.00" (70.00 to 101.6 mm), the tools are single effective cutting to reduce power consumption
Product Specifications
| # MFG | V9532S-100 |
| Pilot Drill Diameter (Inch) | 3-15/16" |
| Pilot Drill Diameter (Decimal Inch) | 3.9370" |
| Pilot Drill Diameter (mm) | 100.00mm |
| Pilot Diameter (Inch) | 1-3/8" |
| Series | 95 |
| Pilot Drill Style | GEN3SYS |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
