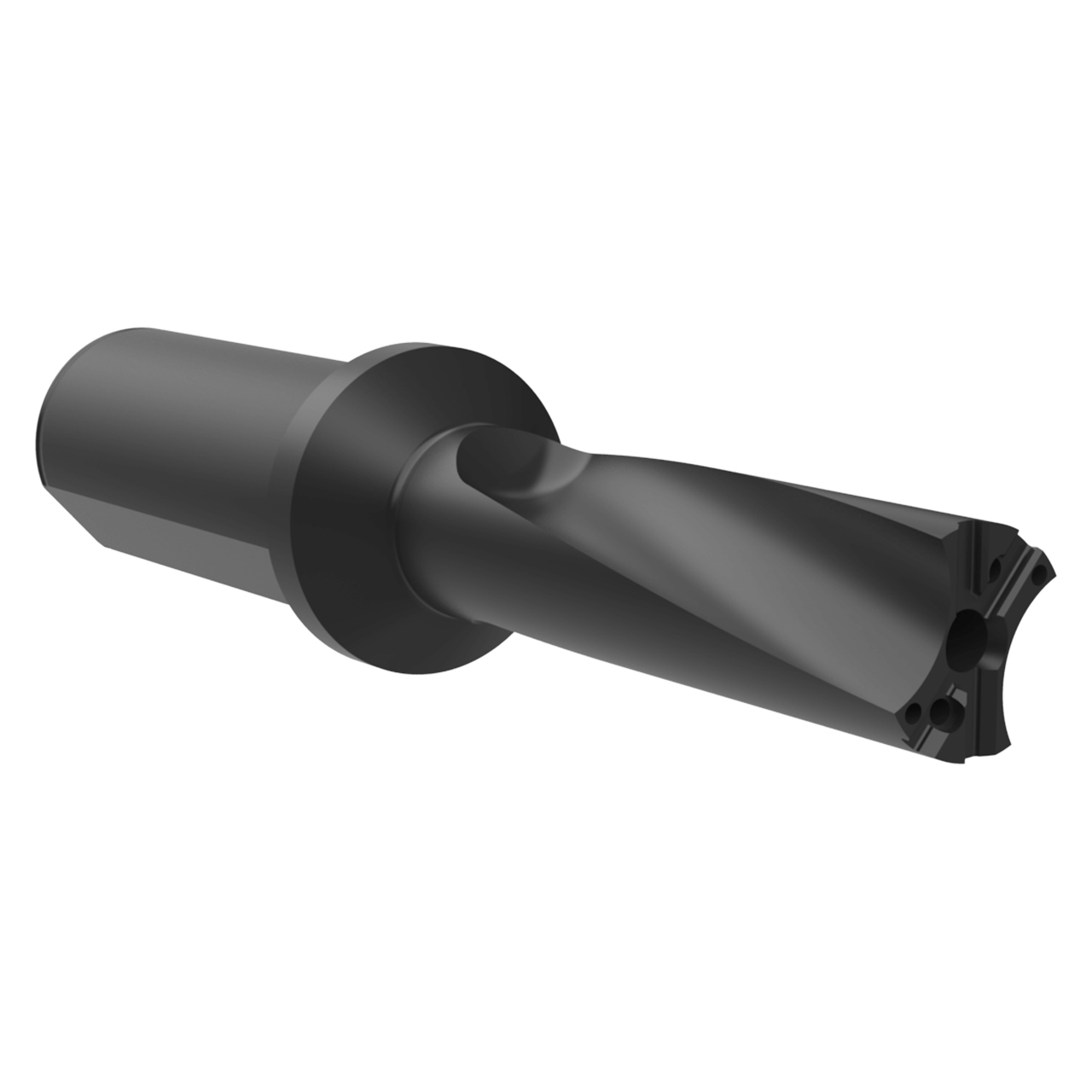

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.
Features:
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength
Product Specifications
| # MFG | W3803H-200F |
| Assembled Overall Length (Inch) | 12-15/64" |
| Assembled Reference Length (Inch) | 7-47/64" |
| Drill Depth (Inch) | 5-1/8" |
| Maximum Diameter (Inch) | 1.7322" |
| Minimum Diameter (Inch) | 1.4961" |
| Minimum Diameter (mm) | 38.00mm |
| Shank Diameter (Inch) | 2.000" |
| Shank Length (Inch) | 4-1/2" |
| Series | 38 |
| Shank Type | Flanged |
| Length Type | 3xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Flute Type | Helical |
