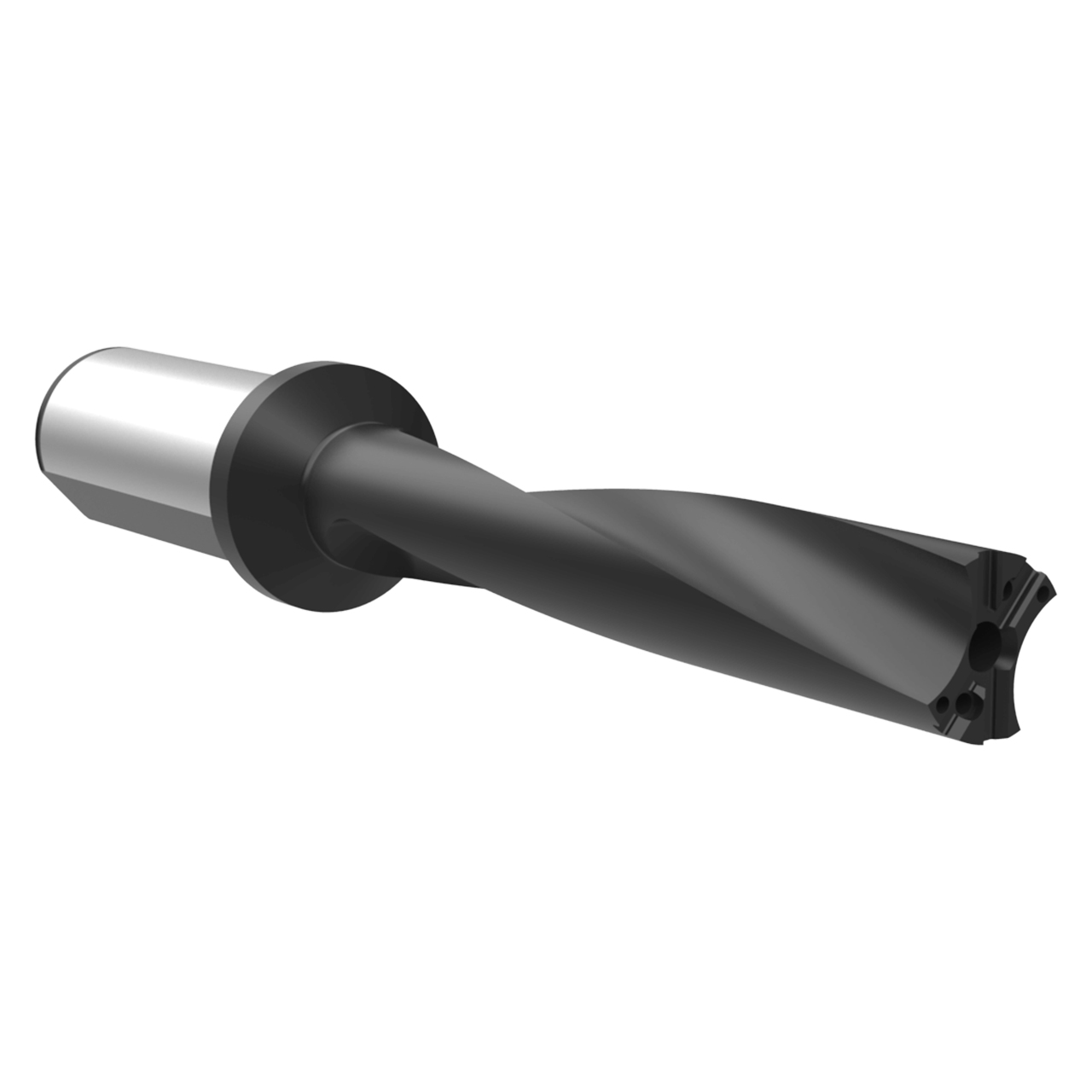

Allied Machine and Engineering W3805H-50FM | 43.99mm Diameter x 50.00mm Shank x 220.00mm Drill Depth 38 Series Flanged Indexable Drill Body

$823.00 $781.85
(You save $41.15)
Brand:
Allied Machine and Engineering
Maximum Diameter (Decimal Inch):
1.7322"
Maximum Diameter (mm):
43.99mm
Minimum Diameter (Decimal Inch):
1.4961"
Minimum Diameter (mm):
38.00mm
Shank Diameter (mm):
50.00mm
Shank Length (mm):
80.00mm
Flute Type:
Helical
Shank Type:
Flanged
interval quantity:
1
SKU:
23030622
UPC:
Weight:
6.17 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.

Features:

  • Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
  • A unique "X" locator on the Head to body connection allows for simple assembly and superior strength

Product Specifications
# MFGW3805H-50FM
Assembled Overall Length (mm)364.5mm
Assembled Reference Length (mm)284.5mm
Drill Depth (mm)220mm
Maximum Diameter (Inch)1.7322"
Minimum Diameter (Inch)1.4961"
Minimum Diameter (mm)38.00mm
Shank Diameter (mm)50.00mm
Shank Length (mm)80mm
Series38
Shank TypeFlanged
Length Type5xØ
Coolant Inlet Style RearThrough the Shank
Flute TypeHelical
