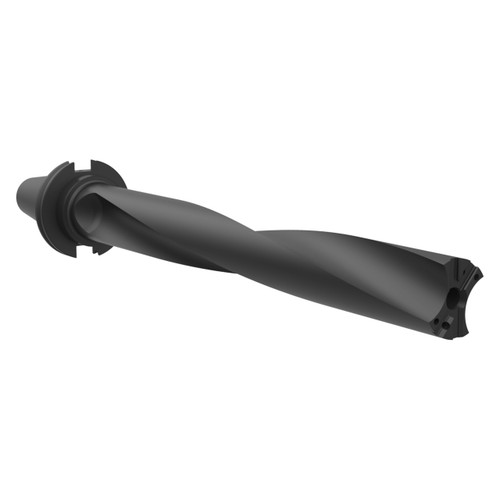

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.
Features:
| # MFG | W5710H-CV50 |
| Assembled Overall Length (Inch) | 31-57/64" |
| Assembled Reference Length (Inch) | 27-57/64" |
| Assembled Reference Length (mm) | 683.8mm |
| Drill Depth (Inch) | 24-3/4" |
| Maximum Diameter (Inch) | 2.4799" |
| Maximum Diameter (mm) | 62.99mm |
| Minimum Diameter (Inch) | 2.2439" |
| Minimum Diameter (mm) | 57.00mm |
| Series | 57 |
| Shank Type | CV 50 |
| Length Type | 10xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Flute Type | Helical |
