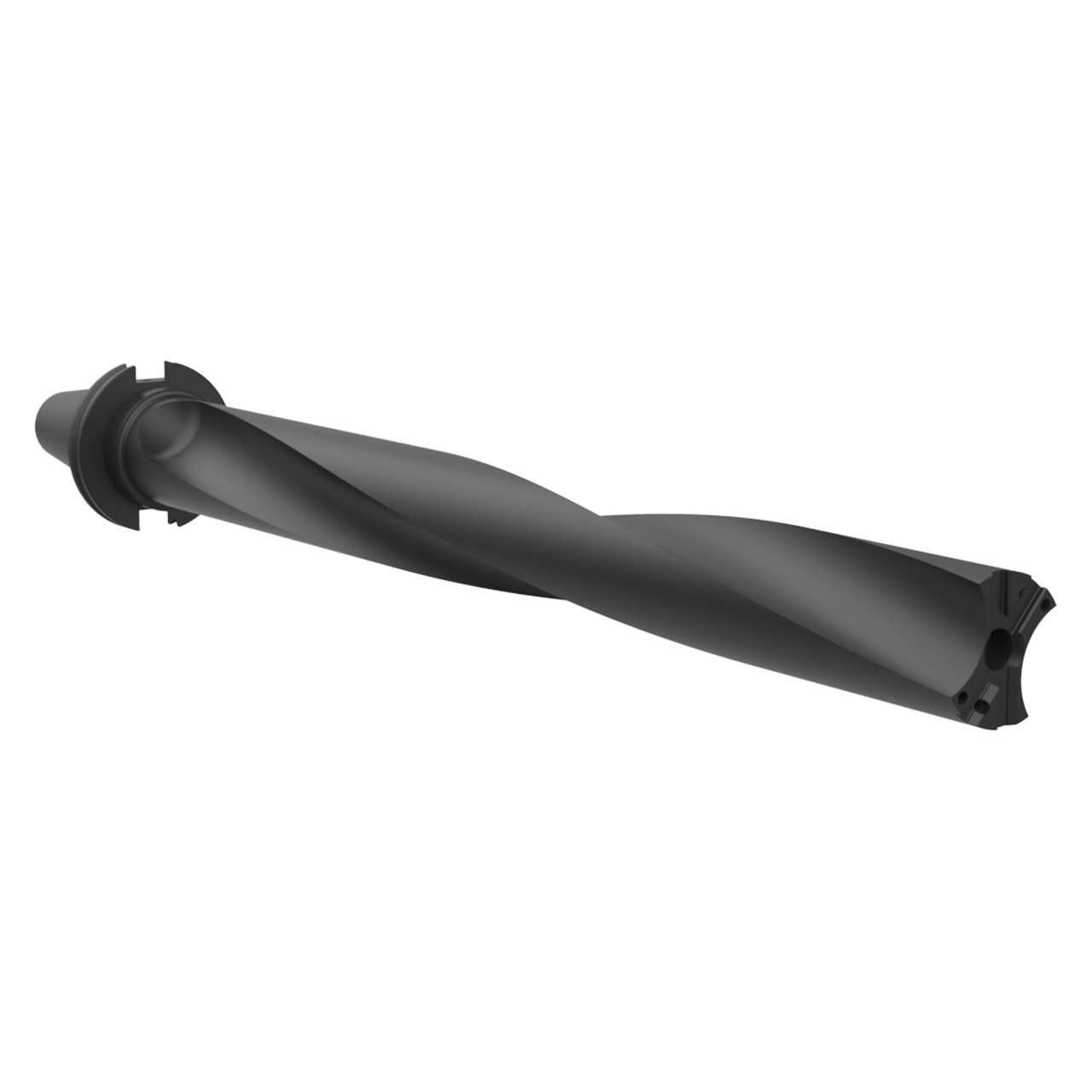

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.
Features:
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength
Product Specifications
| # MFG | W6310H-CV50 |
| Assembled Overall Length (Inch) | 33-43/64" |
| Assembled Reference Length (Inch) | 29-43/64" |
| Assembled Reference Length (mm) | 740.9mm |
| Drill Depth (Inch) | 26-1/2" |
| Maximum Diameter (Inch) | 2.7555" |
| Maximum Diameter (mm) | 69.99mm |
| Minimum Diameter (Inch) | 2.4800" |
| Minimum Diameter (mm) | 63.00mm |
| Series | 63 |
| Shank Type | CV 50 |
| Length Type | 10xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Flute Type | Helical |
