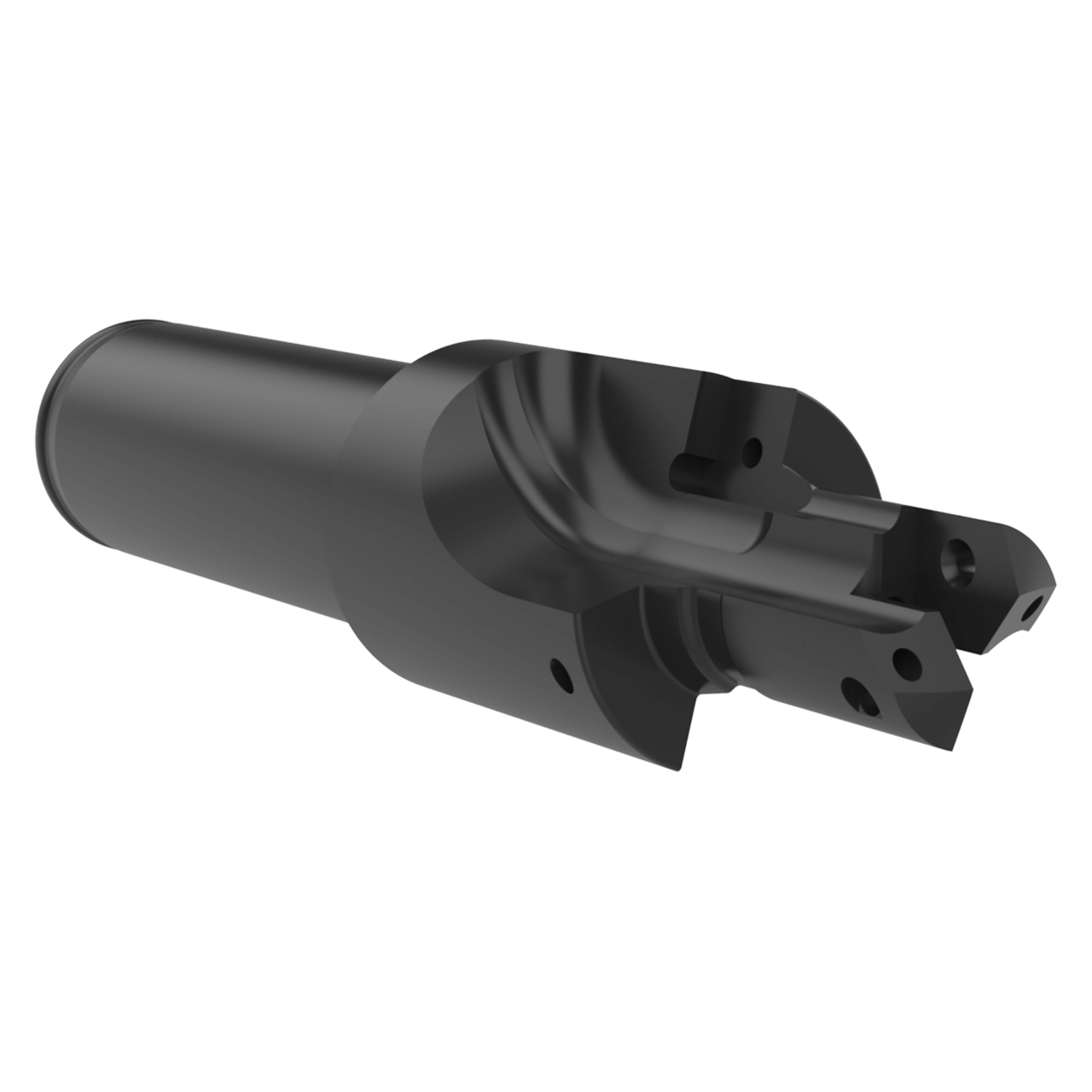

Single Operation Port Hole Drilling Solutions. Allied's revolutionary port hole drilling system combines two manufacturing functions. The patent-pending design provides excellent repeatability and surface finish while eliminating lost production time due.
Features:
- Produced to strict manufacturing tolerances
- Drill and finish forms port in one operation
Product Specifications
| # MFG | X1926-060-075F |
| Pilot Diameter (Inch) | 0.512" |
| Pilot Diameter (mm) | 13mm |
| Spotface Diameter (Inch) | 0.989" |
| Spotface Diameter (mm) | 25.1mm |
| Shank Diameter (Inch) | 0.75" |
| Shank Diameter (mm) | 19.1mm |
| Seal Angle Diameter (Inch) | 0.618" |
| Seal Angle Diameter (mm) | 15.7mm |
| Overall Length (Inch) | 4.07" |
| Overall Length (mm) | 103.5mm |
| Seal Angle Length (Inch) | 0.106" |
| Seal Angle Length (mm) | 3.5mm |
| Pilot Length (Inch) | 0.86" |
| Pilot Length (mm) | 21.8mm |
| Shank Length (Inch) | 1.969" |
| Shank Length (mm) | 50mm |
| Spotface to Shoulder Length (Inch) | 1.144" |
| Spotface to Shoulder Length (mm) | 29mm |
| Seal Angle | 12 Degree |
| Series | 0 |
| Tube Size | -6 |
| Port Standard | SAE J-1926 |
| Port Thread Size | 9/16-18 UNF-2B |
| Shank Type | Cylindrical |
| Pipe Tap Rear (Inch) | 1/8" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Port Standard Designation:
SAE J-1926
Port Thread Size:
9/16-18 UNF-2B
Tube Dash Number:
-6
Pilot Diameter (Inch):
33/64"
Pilot Diameter (Decimal Inch):
0.5120"
Pilot Diameter (mm):
13.00mm
Spotface Diameter (Inch):
63/64"
Spotface Diameter (Decimal Inch):
0.9890"
Spotface Diameter (mm):
25.10mm
Pilot Length (Inch):
55/64"
Pilot Length (Decimal Inch):
0.8600"
Pilot Length (mm):
21.80mm
