Features
- Non-rotating spindle
- Ratchet Stop
- Carbide tipped measuring faces
- Grey painted steel frame
- Inch/Metric conversion
- Automatic on/off
- Absolute or incremental measuring modes
- For measuring the groove diameter of shafts, keyways, and other hard to reach portions
- With S-Wrench, Warranty Card, Instruction Manual, Calibration Certificate
Product Specifications
| Manufacturer Part Number | 7117011 |
| Operation Type | Electronic |
| Minimum Measurement (Inch) | 0" |
| Minimum Measurement (mm) | 0mm |
| Maximum Measurement (Inch) | 1" |
| Maximum Measurement (mm) | 25mm |
| Thimble Type | Ratchet Stop |
| Digit Counter | No |
| Rotating Spindle | No |
| Blade Thickness (mm) | 0.75mm |
| Graduation (Decimal Inch) | 0.0001" |
| Accuracy (Decimal Inch) | ±0.0001" |
| Blade Depth (mm) | 6.5mm |
| Resolution (Decimal Inch) | 0.00005" |
| Water Resistance Rating | None |
| Measuring Face Material | Carbide |
| Resolution (mm) | 0.001mm |

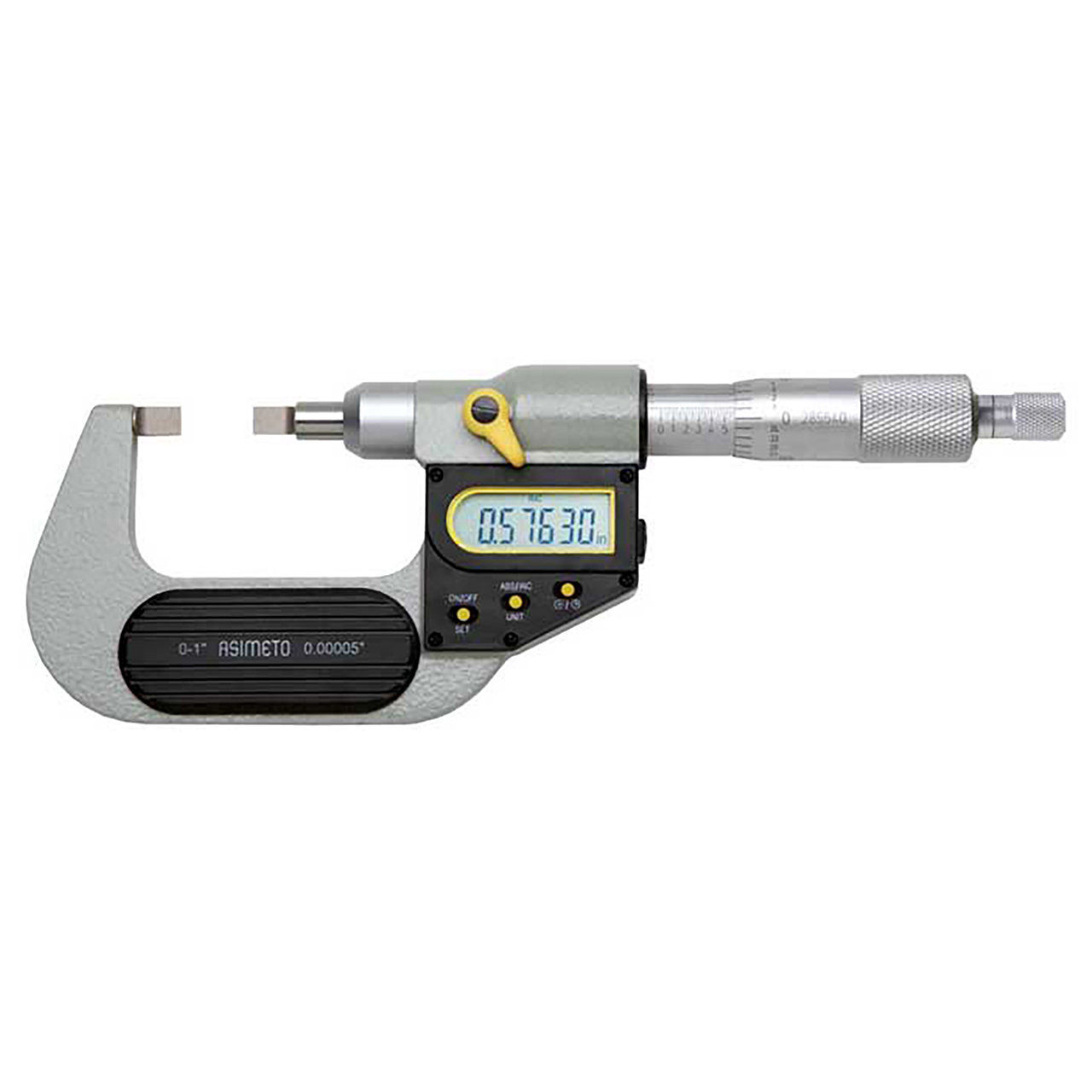

| Product Type | Digital Blade Micrometer |
