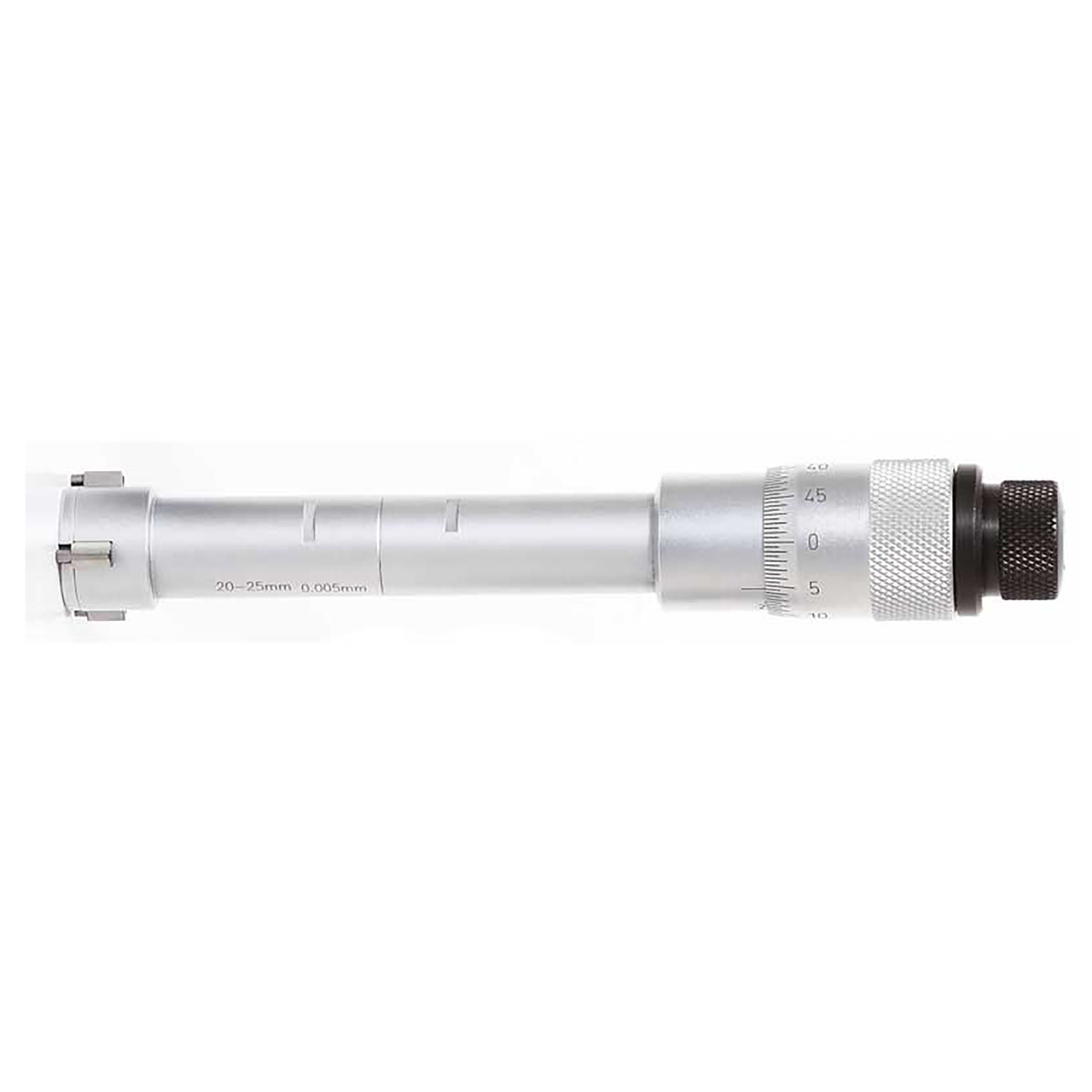

Asimeto 7209281 | 1.6000" Maximum Measurement x 0.0002" Graduation Mechanical Inside Micrometer

Asimeto 7209281 | 1.6000" Maximum Measurement x 0.0002" Graduation Mechanical Inside Micrometer

Name: Asimeto 7209281 | 1.6000" Maximum Measurement x 0.0002" Graduation Mechanical Inside Micrometer
Brand: Asimeto
SKU: 30123080
Price: 653.44 USD
Availability: InStock

SKU: 30123080 Weight: 6.10 LBS Minimum Purchase: 1 unit

UPC:

$759.81 $653.44

(You save $106.37)

Total Price: $653.44

Quantity:

Shipping: Free Shipping

About This Item

Features

Protection level IP65
Ratchet Stop
Additional extensions can be added to increase the measuring depth (over 6mm/0.275")
Measuring contact points are designed to allow measurements near to the bottom of blind holes
With Setting Rings, S-Wrench, Screwdriver, Warranty Card, Instruction Manual, Calibration Certificate

Product Specifications

Manufacturer Part Number	7209281
Type	Internal
Minimum Measurement (Decimal Inch)	1.2"
Maximum Measurement (Decimal Inch)	1.6"
Graduation (Decimal Inch)	0.0002"
Thimble Type	Ratchet Stop
Accuracy (Decimal Inch)	±0.00016"
Number of Contact Points	3
Number of Setting Rings Included	2
Digit Counter	No
Setting Ring Diameter (Decimal Inch)	1.6"
Extension Rod Length (mm)	150mm
Product Type	Mechanical Inside Micrometer
