Features
- Stainless steel
- Designed with fine adjustment to allow precise movement of the slider
- Internal measurement jaws are rounded to provide accurate measurement of internal diameters
- Minimum internal diameter measurement capability of: 10mm for 300mm/12" range, 20mm for over 450mm/18" range
Product Specifications
| Manufacturer Part Number | 7311121 |
| Minimum Measurement (Decimal Inch) | 0" |
| Maximum Measurement (Inch) | 12" |
| Maximum Measurement (mm) | 300mm |
| Graduation (Decimal Inch) | 0.001" |
| Graduation (mm) | 0.02mm |
| Material | Stainless Steel |
| Fine Adjustment | Yes |
| Includes Depth Measurement Rod | No |
| Accuracy (Decimal Inch) | ±0.0015" |
| Includes Inside Diameter Jaws | No |
| Jaw Depth (mm) | 75mm |

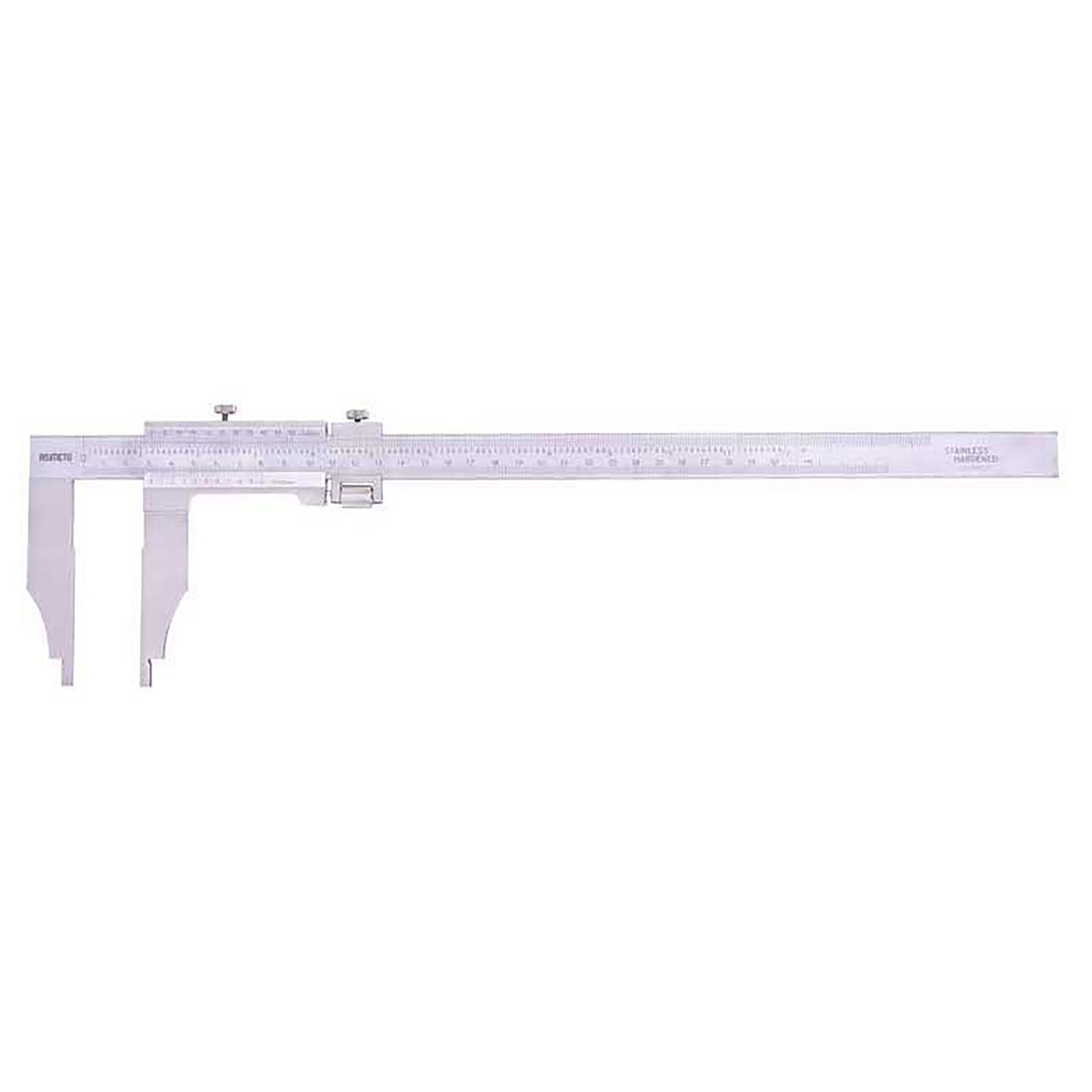

| Product Type | Vernier Caliper |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Asimeto
Maximum Measurement (Inch):
12"
Maximum Measurement (Decimal Inch):
12.0000"
Graduation (Decimal Inch):
0.0010"
Graduation (mm):
0.02mm
