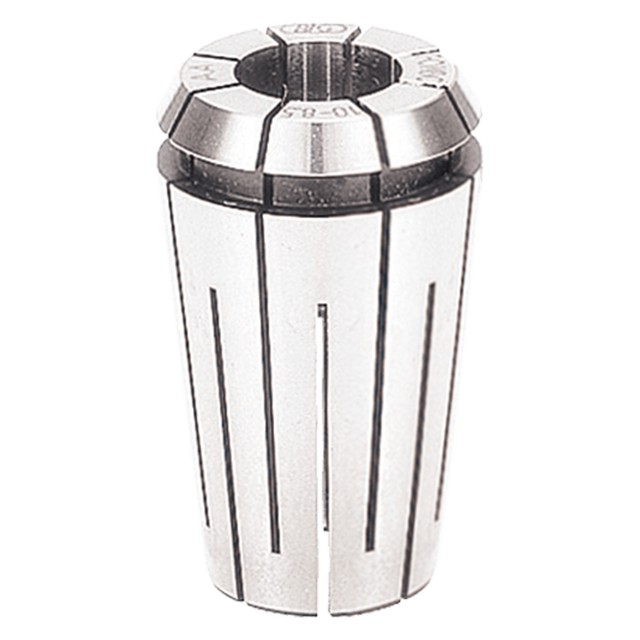

| Catalog Number | FONBC10-6.5AA |
| Length (mm) | 27.00mm |
| Nominal Clamping Size (mm) | 6.50mm |
| Straight Collet Clamping OD (mm) | 16.50mm |
| Minimum Clamping Length (mm) | 24.00mm |
| Minimum Clamping Range (Inch) | 0.2500" |
| Minimum Clamping Range (mm) | 6.40mm |
| Maximum Clamping Range (Inch) | 0.2560" |
| Maximum Clamping Range (mm) | 6.50mm |
| Collet Series | NBC10 |
| Sealed Coolant Capability | Yes |
| Jet Coolant Capability | No |
| Tapping Capability | No |
| Product Type | ER Collet |
