Product Specifications

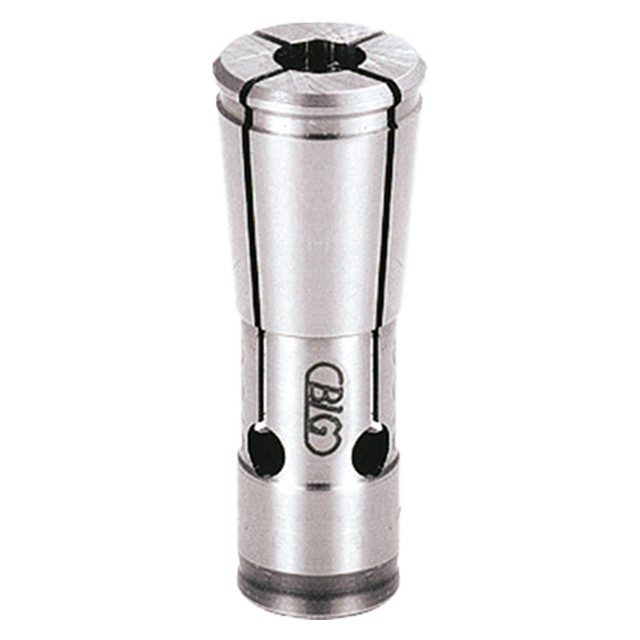

| Catalog Number | NBC6S-5.5AA |
| Length (mm) | 24.50mm |
| Nominal Clamping Size (mm) | 5.50mm |
| Straight Collet Clamping OD (mm) | 9.40mm |
| Minimum Clamping Range (Inch) | 0.2150" |
| Minimum Clamping Range (mm) | 5.45mm |
| Maximum Clamping Range (Inch) | 0.2190" |
| Maximum Clamping Range (mm) | 5.55mm |
| Collet Series | NBC6S |
| Sealed Coolant Capability | No |
| Jet Coolant Capability | No |
| Tapping Capability | No |
| Product Type | Micro Collet |
