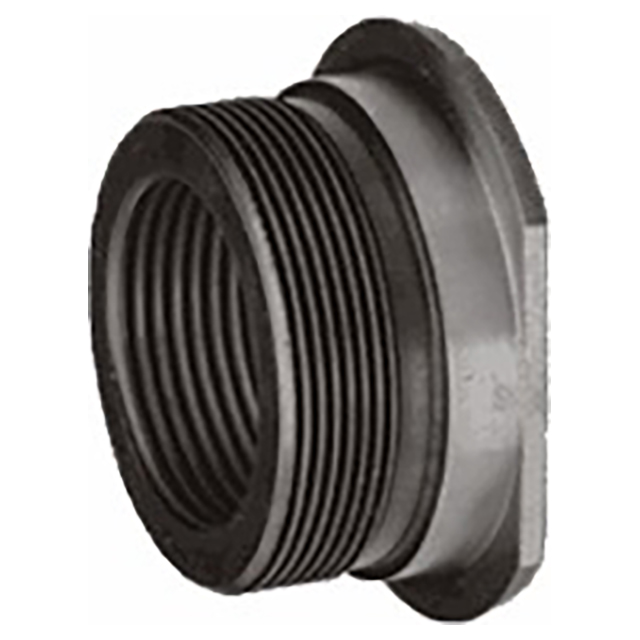

Reducers
These allow mounting a smaller-series air-feed adaptor tip on a larger-series drill motor.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Steel | - | - | ✔ | ✔ |

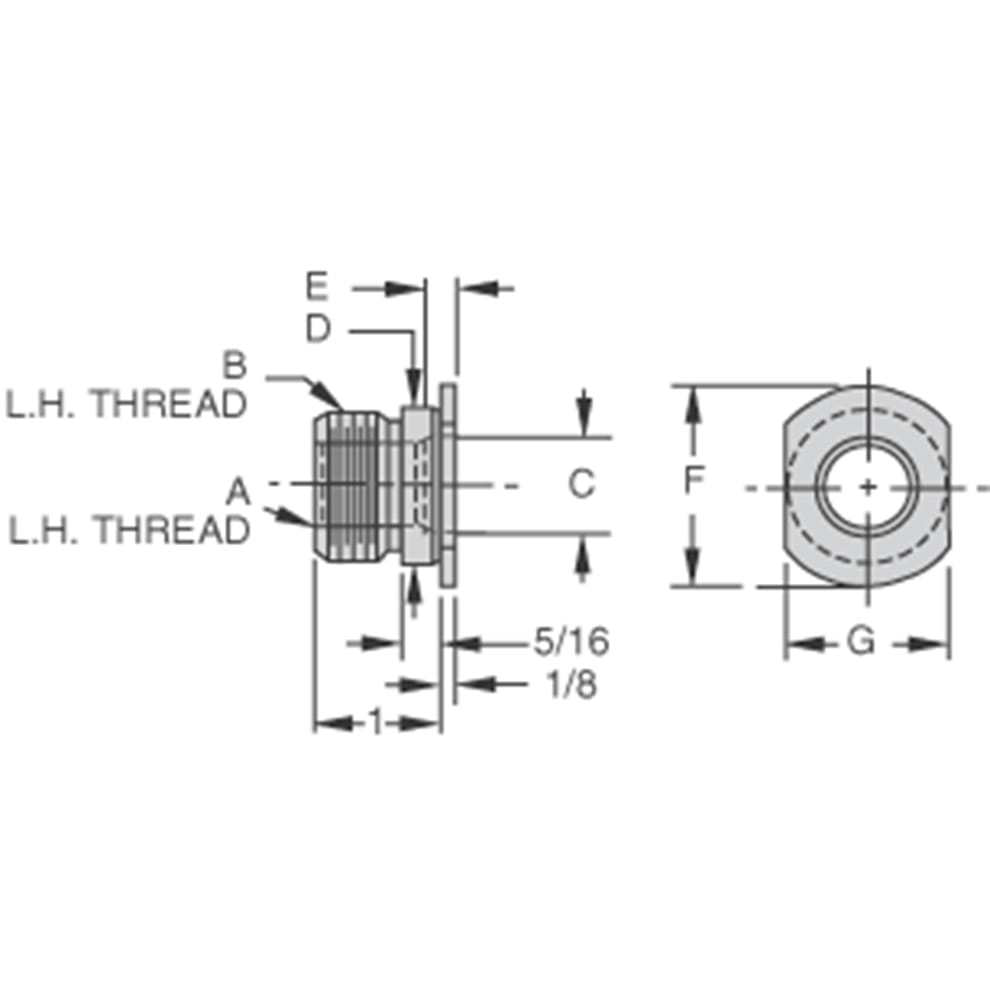

Parts Specification
| A Internal Thread (Inch) | B External Thread (Inch) | C Diameter (Inch) | D Diameter (Inch) | E (Inch) | F Diameter (Inch) | G (Inch) |
| 3/4-16" | 1"-14" | 0.8125" | 1.0610 / 1.0604" | 9/32" | 1-3/8" | 1-1/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
