Construction-Ball Pads

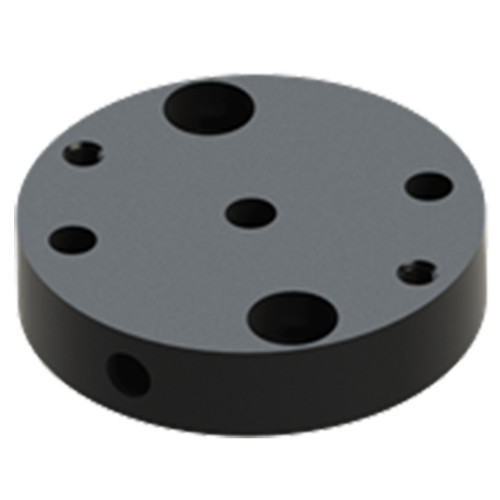

Precision round pad for mounting a Construction Ball. These round pads should be fastened with two socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a #10-32 or M6x0.8 setscrew (not furnished) in the crosshole. Made in USA.
Installation
Bolt pad in position with two socket-head cap screws. After mounting, drill through the 15/64" holes and ream to 1/4" diameter, to install dowel pins for secure location.
Optional Cover
Two #10-32 tapped holes allow attaching the cover.
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1144 Steel | - | Black Oxide | Yes | Yes | |
Parts Specification
| Anominal (Inch) | Aactual (Inch) | B (Inch) | C±.0005 (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) |
| 1/4" | 0.2503 / 2500" | 2.25" | 0.5" | 1.75" | 0.25" | 0.5" | #10-32" | 15/64" | 1.88" |
