Heavy-Duty Rest Pads
Large, precision rest pad for heavy-duty applications. These hardened pads have a large, durable contact surface to support heavy workpieces. Ground for accurate height location. Mount with four socket-head cap screws (not furnished). Heavy-Duty Rest Pads are extremely useful as supports, side locator pads, or wear pads.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | carburized-hardened | Black Oxide | Yes | Yes |

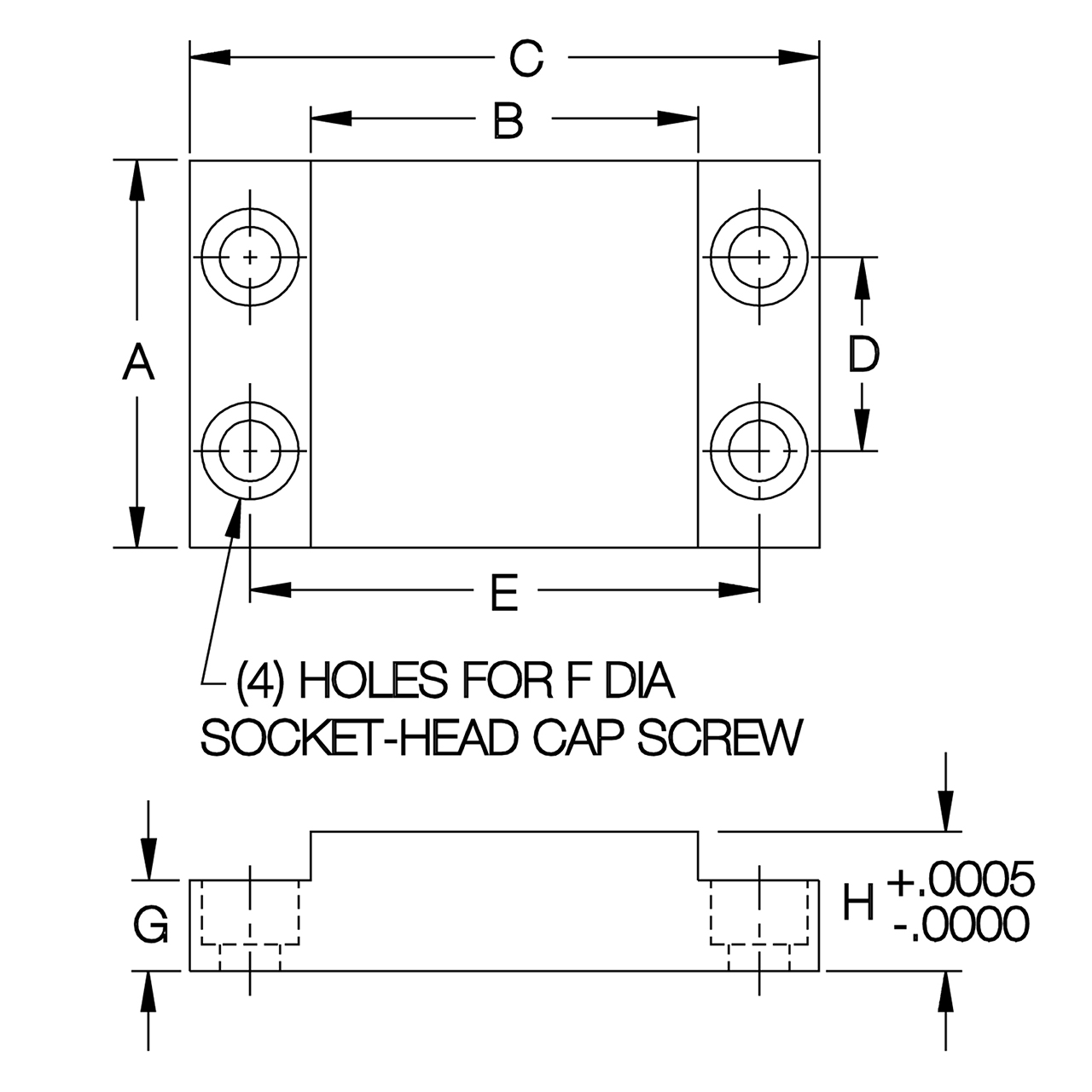

Parts Specification
| A (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) |
| 2" | 2" | 3-1/4" | 1" | 2-1/2" | 1/4-20 or M6" | 1/2" | 0.7500" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
