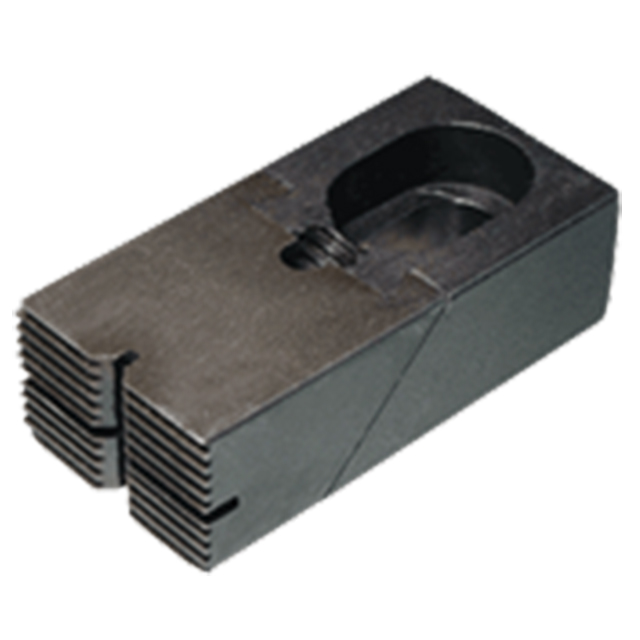

Carr Lane CL-1-SAC | 5/16-18 Size Serrated Adjustable Edge Clamp

Serrated Adjustable Edge Clamps

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by tightening the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose clamping jaw or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The adjustable (slotted) edge clamps are useful for mounting directly on a machine table. The slot is tapered to prevent the clamp from backing off under heavy forces (use two mounting screws on longer clamps).

Application Information

Clamp by tightening the socket-head screw in the sliding jaw with a hex wrench.

High-Nose Version

The high-nose version is best for most applications-gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.

Material

Parts Specification
