Serrated Adjustable Edge Clamps

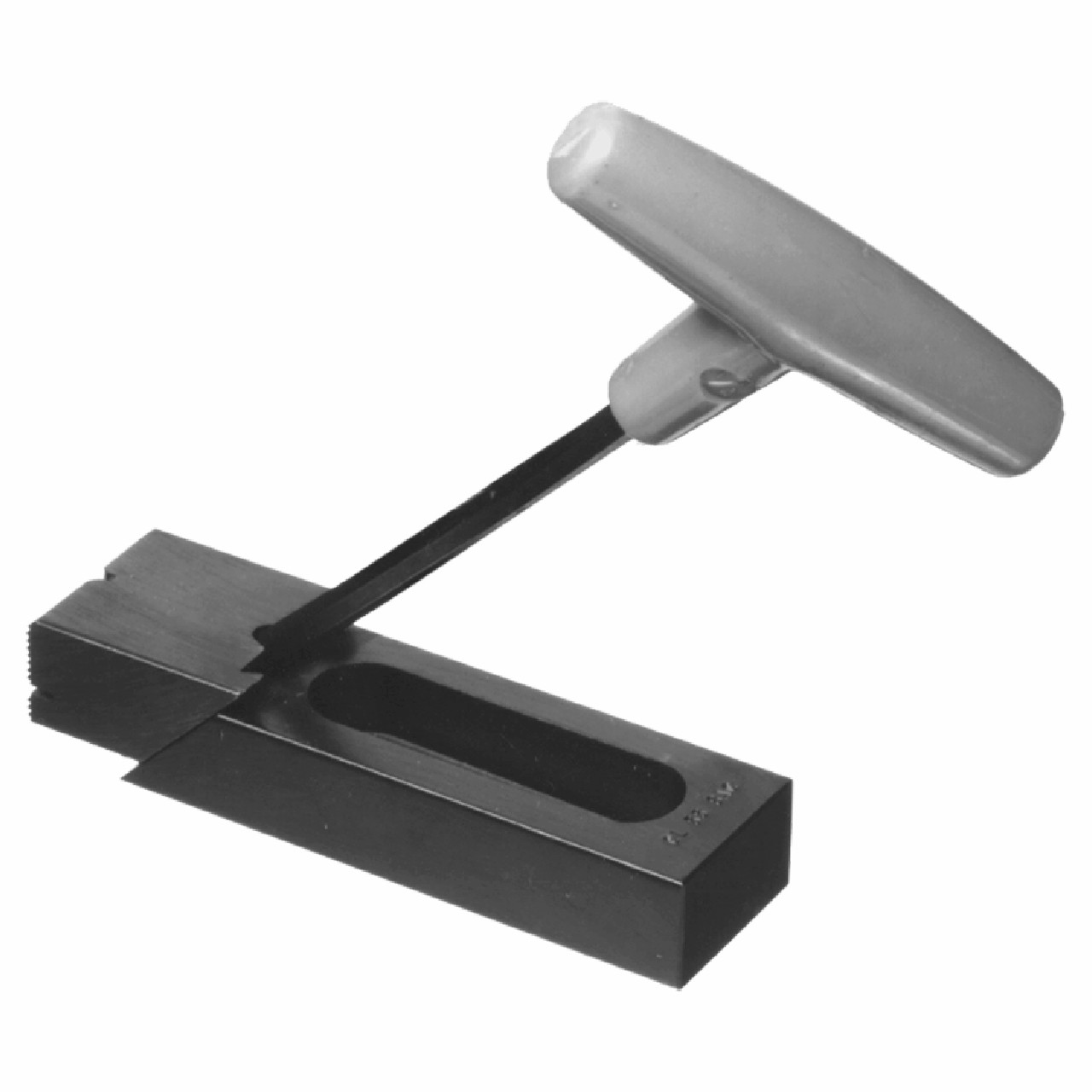

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.
Application Information
High-Nose Version

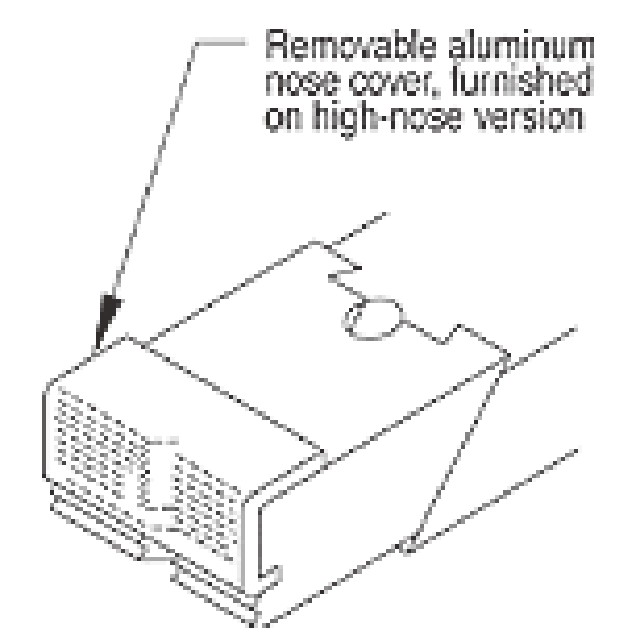

The high-nose version shown here is best for most applications-gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body and Nose | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Clamping Screw | 4140 Steel | Heat Treated Rc 43-45 | black oxide finish | Yes | Yes |

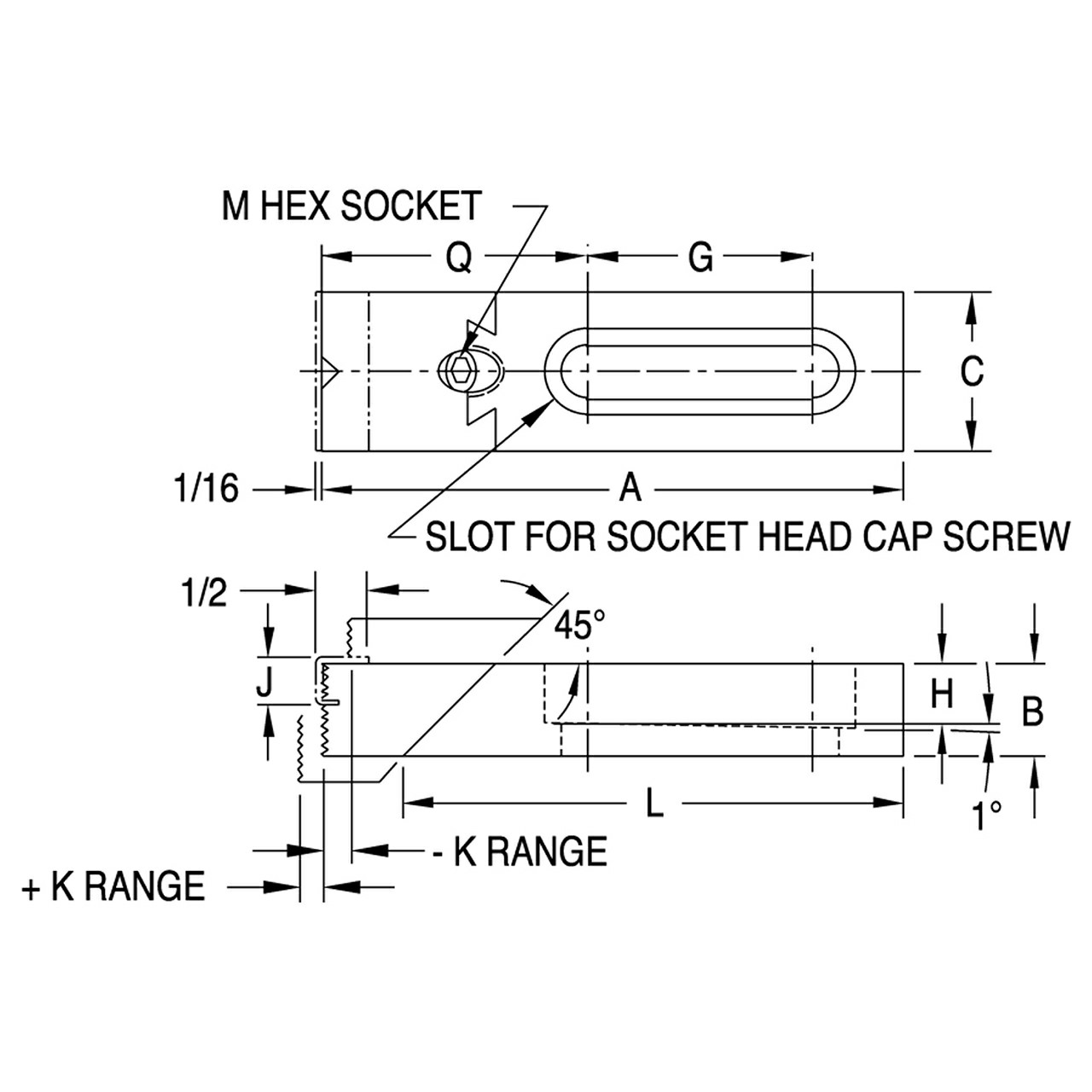

Parts Specification
| Mounting Screw Size | A (Inch) | B (Inch) | C (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) | M (Inch) | Q (Inch) |
| 5/8-11 | 5-1/2" | 1-1/4" | 1-3/4" | 1-3/8" | 5/8" | 3/4" | 5/16" | 4-1/2" | 5/16" | 3-9/32" |
