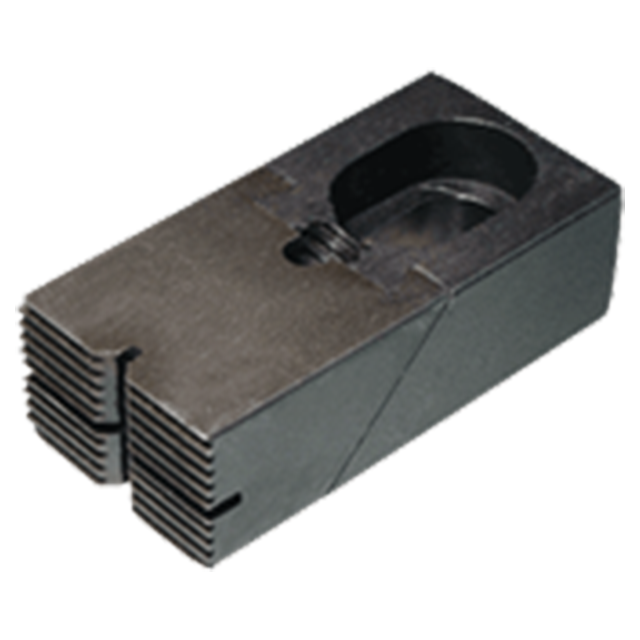

Carr Lane CL-90-SAC | 5/8"-11 Screw Size Serrated Adjustable Edge Clamp

SKU: 50017518 Weight: 3.35 LBS Minimum Purchase: 1 unit
UPC:
$171.33
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

Serrated Adjustable Edge Clamps

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The adjustable (slotted) edge clamps are useful for mounting directly on a machine table. The slot is tapered to prevent the clamp from backing off under heavy forces (use two mounting screws on longer clamps). Made in USA.The Serrated Adjustable Edge Clamps are for Heavy System MF50 (5/8-11 mounting screws).

Low-Nose Version

The low-nose version shown here is ideal for thin parts and other applications where extra machining clearance is required.

Material

Item Material Heat Treat Finish DFARS RoHS
Body and Nose 1018 Steel Carburized Hardened Black Oxide ✔ ✔
Clamping Screw 4140 Steel Heat Treated Rc 43-45 black oxide Finish ✔ ✔

Parts Specification

Mounting Screw Size A B C G H K L M N P Q
5/8-11 5-1/2 1-1/4 1-3/4 1-3/8 5/8 5/16 4-1/2 5/16 5/16 3/8 3-9/32
