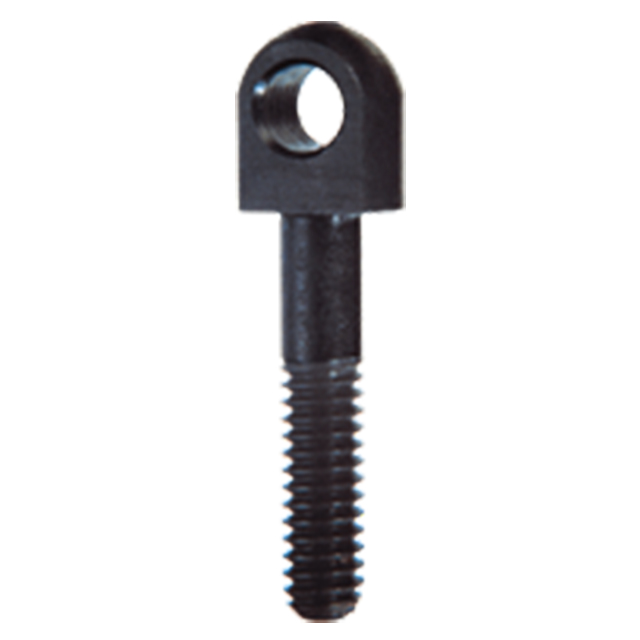

Swing Bolts
Shoulder-type eye bolt that can be used as a stationary hinge point. Reamed hole for smooth bearing.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | B Diameter Nominal (Inch) | B Diameter Actual (Inch) | C (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G Nominal (Inch) | G Actual (Inch) | H (Inch) |
| 3/8-16" | 3/8" | 0.375" | 1-3/8" | 2" | 2-1/2" | 3/4" | 1/2" | 0.500" | 1/2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
