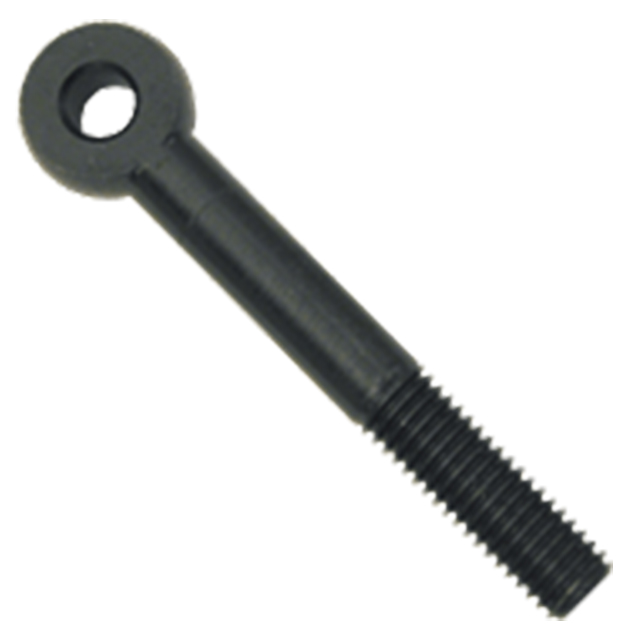

High-strength Eye Bolt with a reamed bearing hole.
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Eye Bolts | 300-series stainless steel | - | Passivated | Yes | Yes |
| A Thread (Inch) | D Diameter Nominal (Inch) | D Diameter Actual (Inch) +.002/-.000 | B (Inch) | C (Inch) | E (Inch) | F Nominal (Inch) | F Actual +.000/-.005 |
| 3/8-16" | 3/8" | 0.375" | 3-3/4" | 2" | 3/4" | 3/8" | 0.375 |
