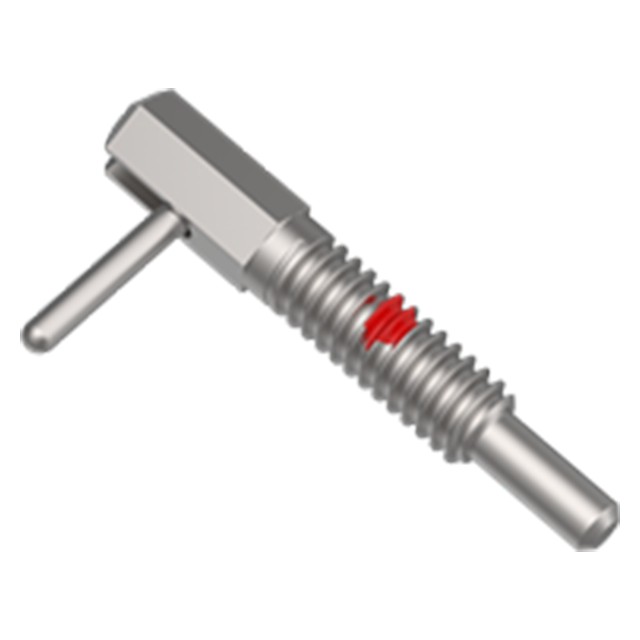

Long-stroke spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Made in USA.
Extended
Retracted
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body, Knurled Head and Spring | 300-series Stainless Steel | - | - | Yes | Yes |
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | G (inch) | H (inch) | J Diameter (inch) |
| 5/8-11 | 1 lbs. | 5 lbs. | 0.375" | 1" | 1-3/4" | 3" | 5/8" | 1-5/16" | 3/16" |
