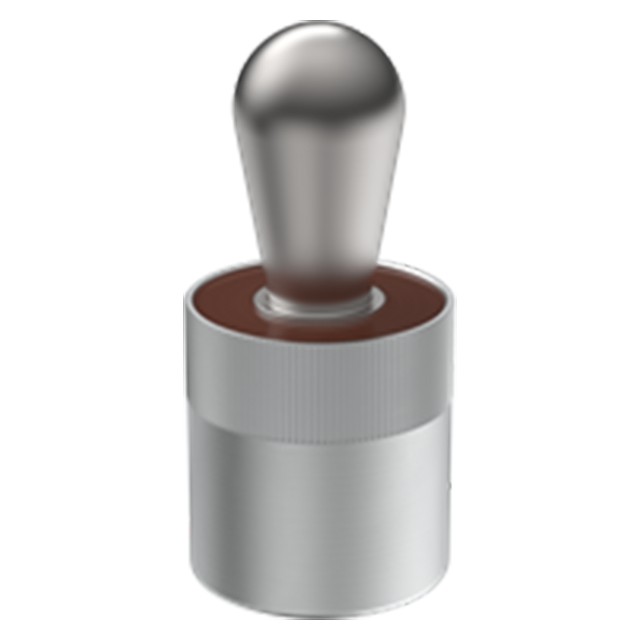

Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version with a stainless steel contact pin and a solid polyurethane body covered by an aluminum shell, is ideal for corrosive environments and hygienic applications. Choice of light, medium, or heavy force in most sizes.
Distance to Workpiece Calculator
This calculator is used to determine the appropriate distance to install a spring locating pin from a workpiece.
Spring Locating Pins can also be used as grippers for light clamping
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Pin | 300-Series Stainless | - | - | Yes | Yes |
| Body | Solid polyurethane | - | - | Yes | Yes |
| Housing | Aluminum | - | - | Yes | Yes |
| A Diameter (inch) | Approx Side Force (lbs) | Spring Color | B Diameter (inch) | C (inch) | D (inch) | X Dim When Y Equals 1/16 | X Dim When Y Equals 1/8 | X Dim When Y Equals 3/16 | X Dim When Y Equals 1/4 | X Dim When Y Equals 5/16 | X Dim When Y Equals 3/8 | X Dim When Y Equals 7/16 | X Dim When Y Equals 1/2 Or More |
| 5/8" | 36 lbs. | GREEN | 0.394" | 0.678" | 0.675" | 0.084 | 0.091 | 0.099 | 0.107 | 0.114 | 0.122 | 0.130 | 0.135 |
