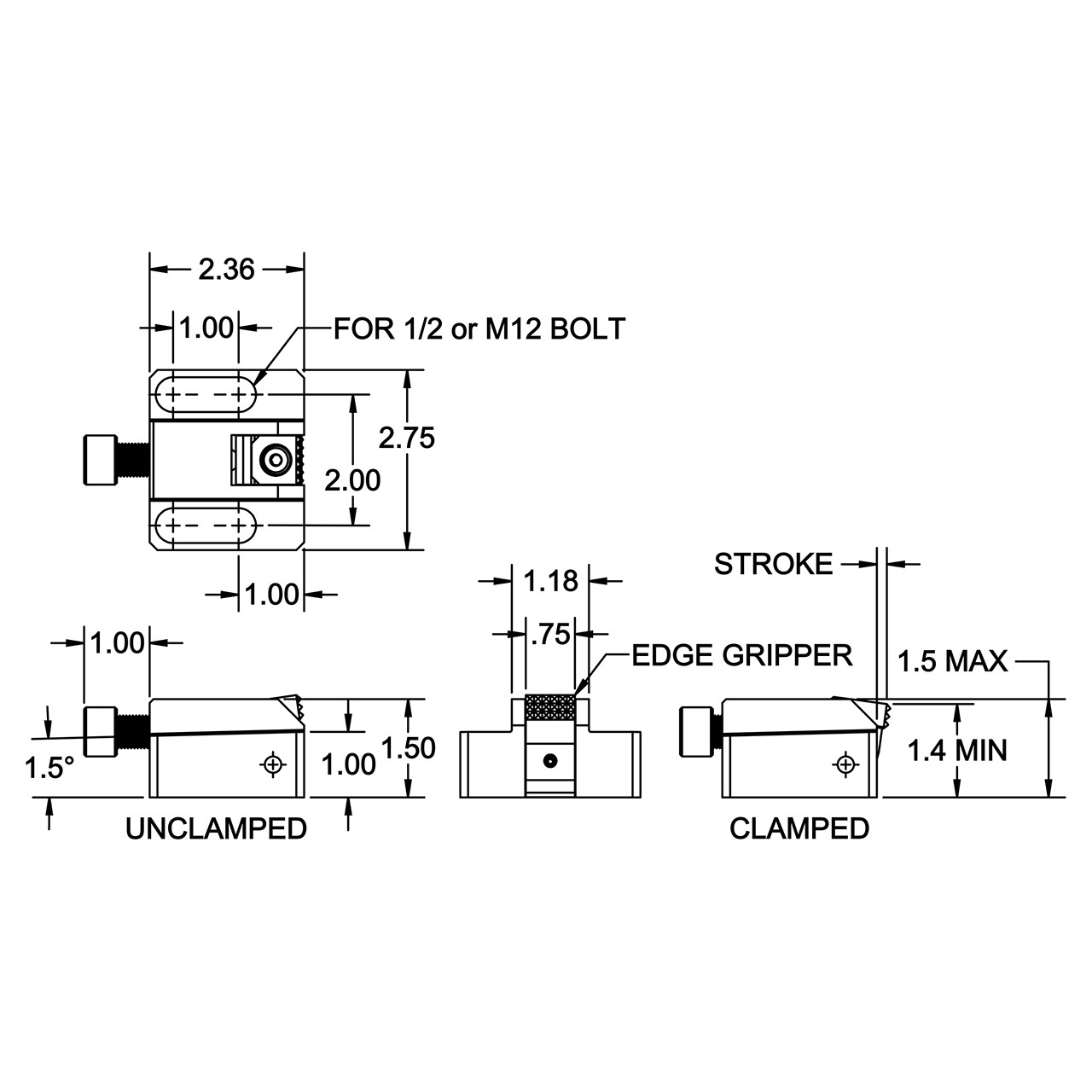

Low Profile Pivoting Edge Clamp
This edge clamp is well suited for holding medium to large castings and other moderate to tall workpieces. The pivoting jaw exerts clamping force forward and downward at the same time. The jaw has a replaceable serrated gripper made of hardened tool steel for high-production durability. The slotted base provides adjustability and has a tapered top surface to prevent the clamp from moving. Fasten with two Socket-Head Cap Screws. Made in USA.
Material
| Item | Material | Heat Treat | Finish |
| Body and Jaw | 1018 Steel | - | Black Oxide |
| Edge Gripper | M-2 tool steel | Heat Treated Rc 60-62 | Black Oxide |
| Dowel Pin | 4140 Alloy Steel | - | - |
Parts Specification
| Maximum Clamping Stroke | Mounting Screw Size | Thrus Screw Size |
| 3/8 | 1/2-13 or M12 | 1/2-20 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
