Adjustable Handle
Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism.
Operation
Lift handle to disengage serrations, rotate to desired position, then release handle to automatically re-engage spline.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Handle | Zinc Die Casting | Yes | Enamel Paint | Yes | Yes |
| Body,Screw & Spring | Mild Steel | Yes | Black Oxide Finish | Yes | Yes |

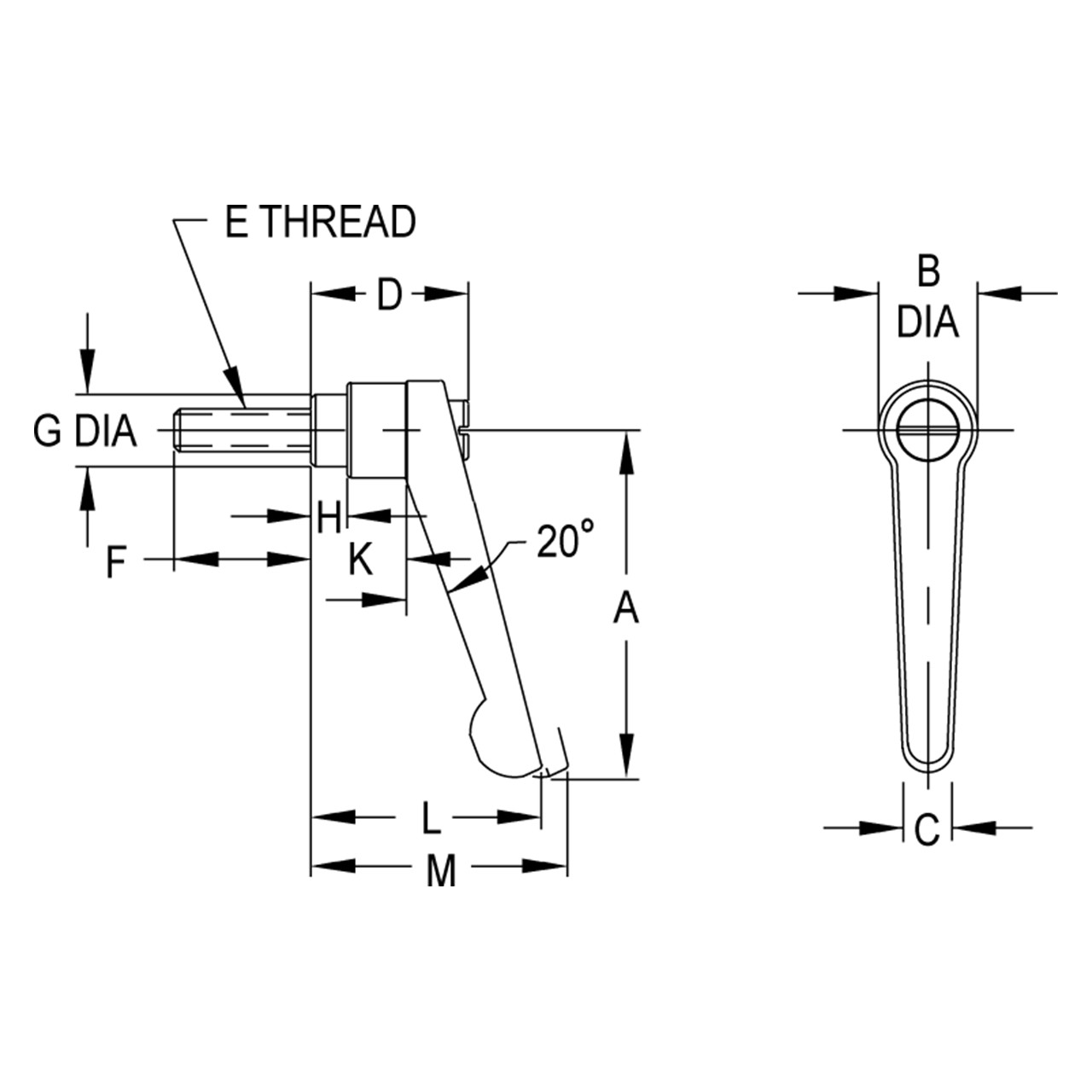

Parts Specification
| Size | E Thread (Inch) | F (Inch) |
| Yes | 5/8-11" | 2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
