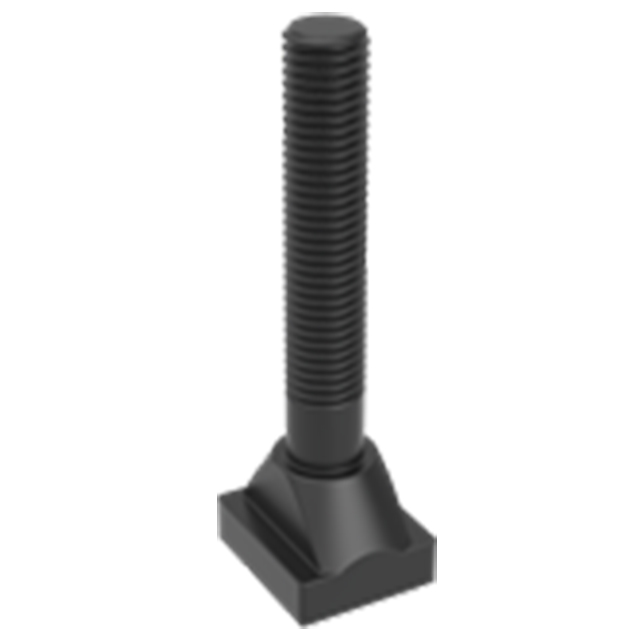

High-quality high-strength forged clamping bolt for T-slotted machine tables. Fully machined flats where the T-Bolt contacts the T-Slot. Provides full bearing with the slot to prevent twisting or jamming. One-piece design can provide a larger diameter stud compared to a T-Nut & Stud combination.
| Material | Heat Treat | Finish |
| Forged Medium Carbon Steel | Grade 8.8, Rc 24-30 | Black Oxide |
| A Slot Width (Inch) | B Thread (Inch) | C (Inch) | D X E (Inch) | F Length (Inch) | G (Inch) |
| 3/4"" | 5/8-11" | 0.39" | 1.10 x 1.10" | 2.56" | 1.77" |
