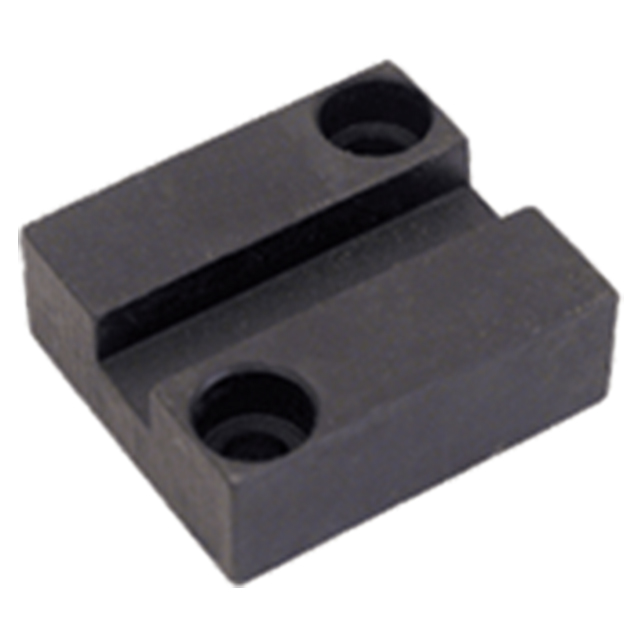

Guide Blocks
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Clamp-strap Stud Size | A | B | C | D | E | F | G Mounting Screws | H | J |
| 3/4-10 or M20 | 0.640 | 0.18 | 3/4 | 1-3/4 | 1/4 | 2-13/32 | 1/4-20 or M6 | 1-1/4 | 1-29/32 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
