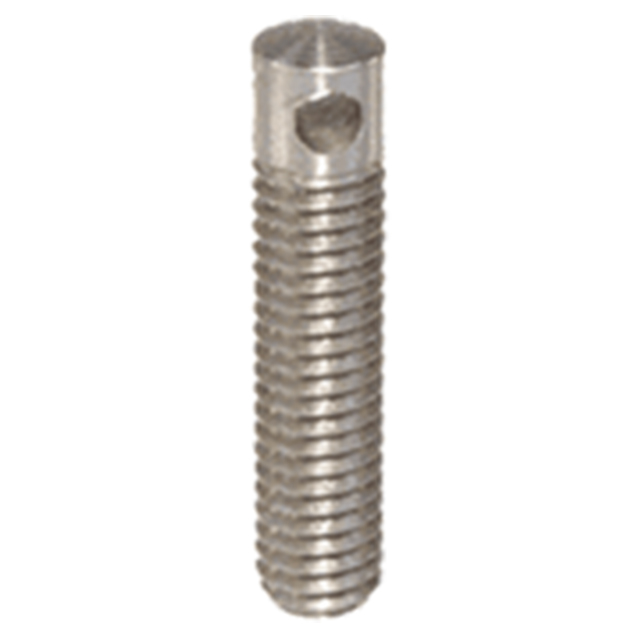

Clamp Rests-Stainless Steel
Rear support for small, stainless-steel Slotted-Heel and Tapped-Heel Clamp Straps. The cross-drilled hole allows adjustment and tightening by inserting a rod. Made in USA.
Application Information
Clamp Rest used with Slotted-Heel Clamp Strap
Clamp Rest used with Tapped-Heel Clamp Strap
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | Passivated | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 5/16-18" | 1-1/8" | 1-1/2" | 5/32" | 3/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
