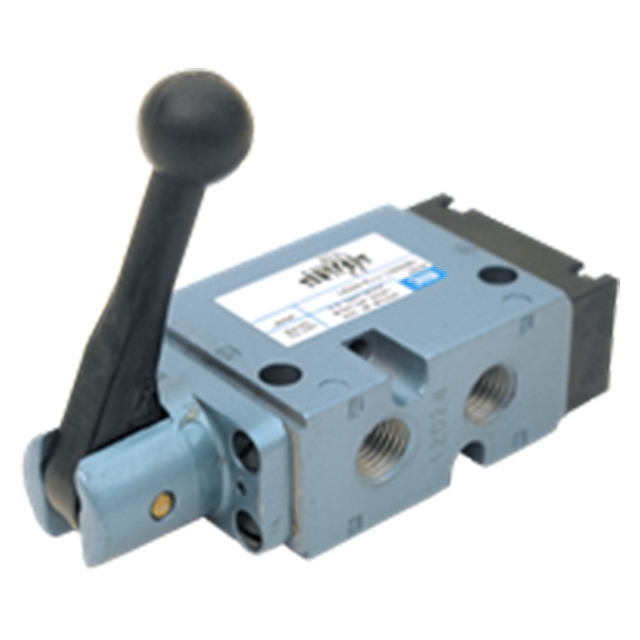

CL-14-PCAV
Versatile two-position, four-way valve for simple and convenient clamp control. Five 1/4-NPT ports: one input port, one clamping port, one unclamping port, and two air-exhaust ports. 150 psi maximum pressure.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Brass | - | - | โ | โ |
| Valve Type | Ports | Maximum Operating Pressure |
| 4-Way, 2-Position | 1/4-NPT Female x 5 | 150 psi |
