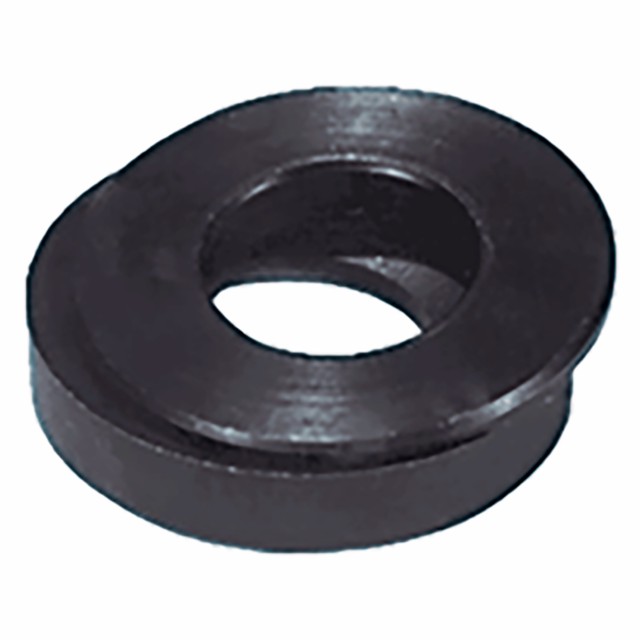

Heavy-duty two-piece washer that compensates whenever a stud and clamping surface are not exactly perpendicular. The top washer has a convex spherical radius, while the bottom washer has a matching concave spherical radius. Made in USA.
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
| Bolt Size | A Diameter | B Diameter | C | D Diameter | R |
| 1/2 or M12 | 17/32 | 1-1/8 | 5/16 | 9/16 | 1-1/2 |
