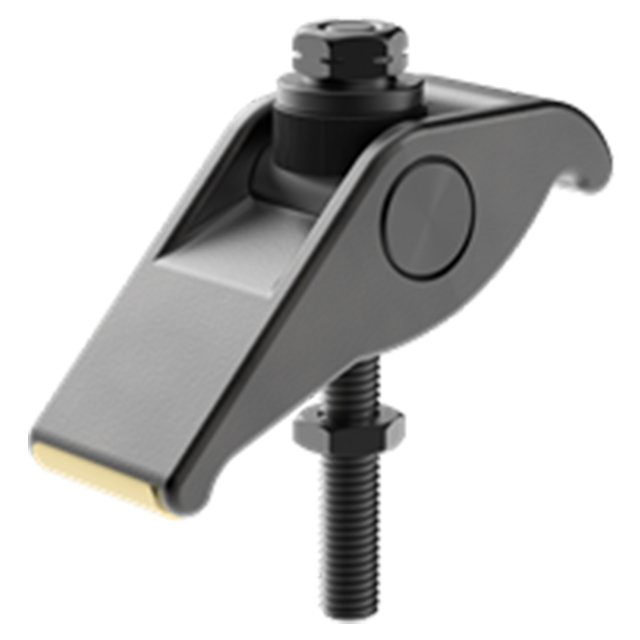

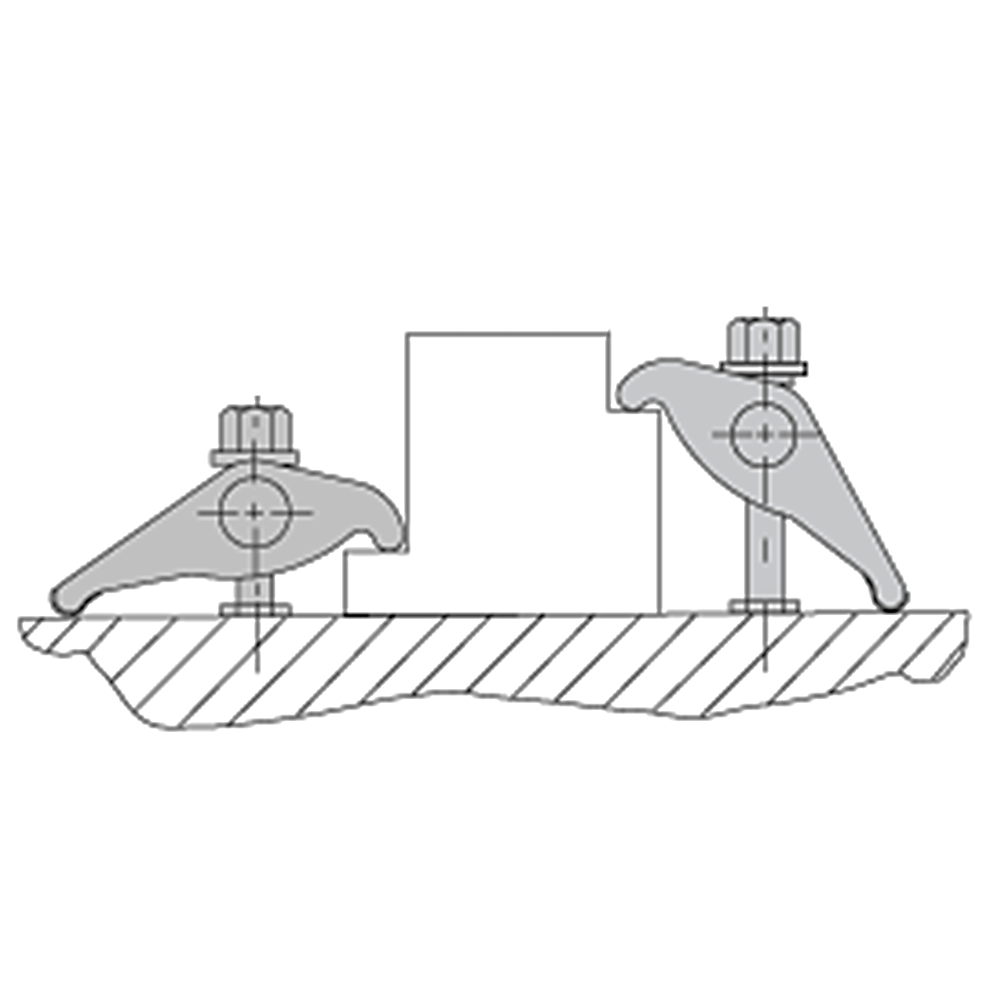

Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | Forged 1045 Steel | - | Black Oxide | Yes | Yes |
| Clamp Pivot | Mild Steel | - | Black Oxide | Yes | Yes |
| Removable Heel Pad | Brass | - | - | Yes | Yes |

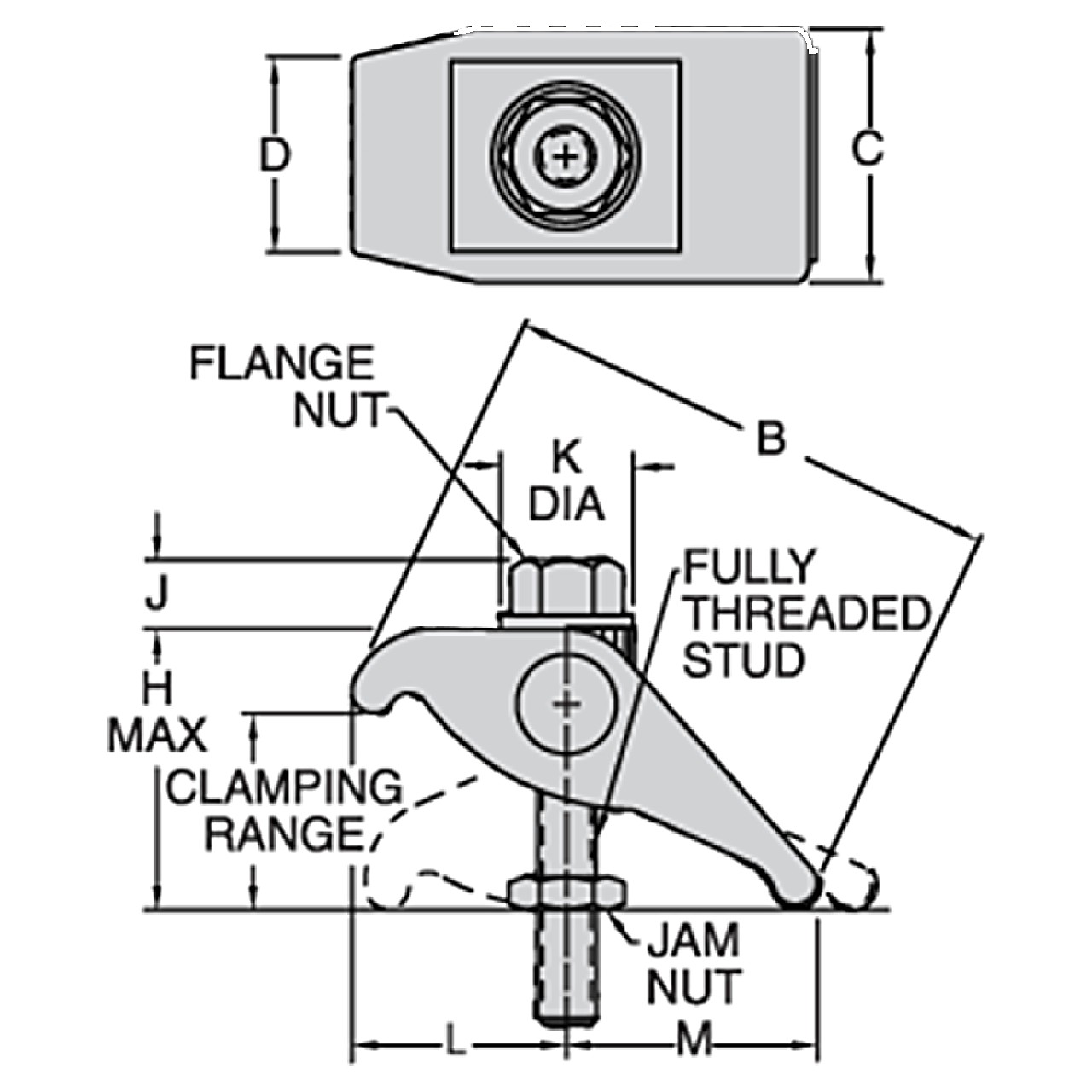

| Stud Size (Inch) | Clamping Range (Inch) | B (Inch) | C (Inch) | D (Inch) | H (Inch) | J (Inch) | K Diameter (Inch) | L Min (Inch) | L Max (Inch) | M Min (Inch) | M Max (Inch) |
| 1-8"" | 0 to 5-1/2" | 7" | 3-1/8" | 2-3/8" | 7" | 1-1/4" | 2" | 2-1/4" | 2-5/8" | 3-13/16" | 4-3/8" |
