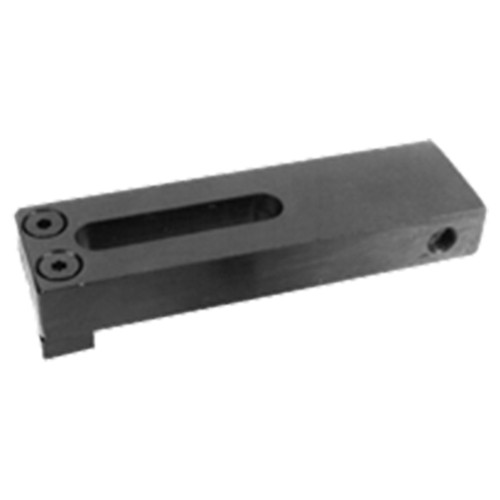

Slotted-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a slot underneath to slide straight back for clear loading. The tapped hole at the rear of each side allows installing a Finger Pin. Made in USA.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Strap | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Steel Clamping Pad | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| A Stud Size | B | C | D | E | F | G | H | J | K | L | M | N Thread | P | Q |
| 1/4-20 or M6 | 3/8 | 5/8 | 2 | 3/8 | 5/8 | 1/4 | 1/8 | 9/32 | 5/32 | 1/4 | --- | --- | 11/32 | 9/64 |
