Slotted-Heel Padded Clamp Strap Assembly
Slotted-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a slot underneath to slide straight back for clear loading. The tapped hole at the rear of each side allows installing a Finger Pin. Made in USA.
Clamping Pads

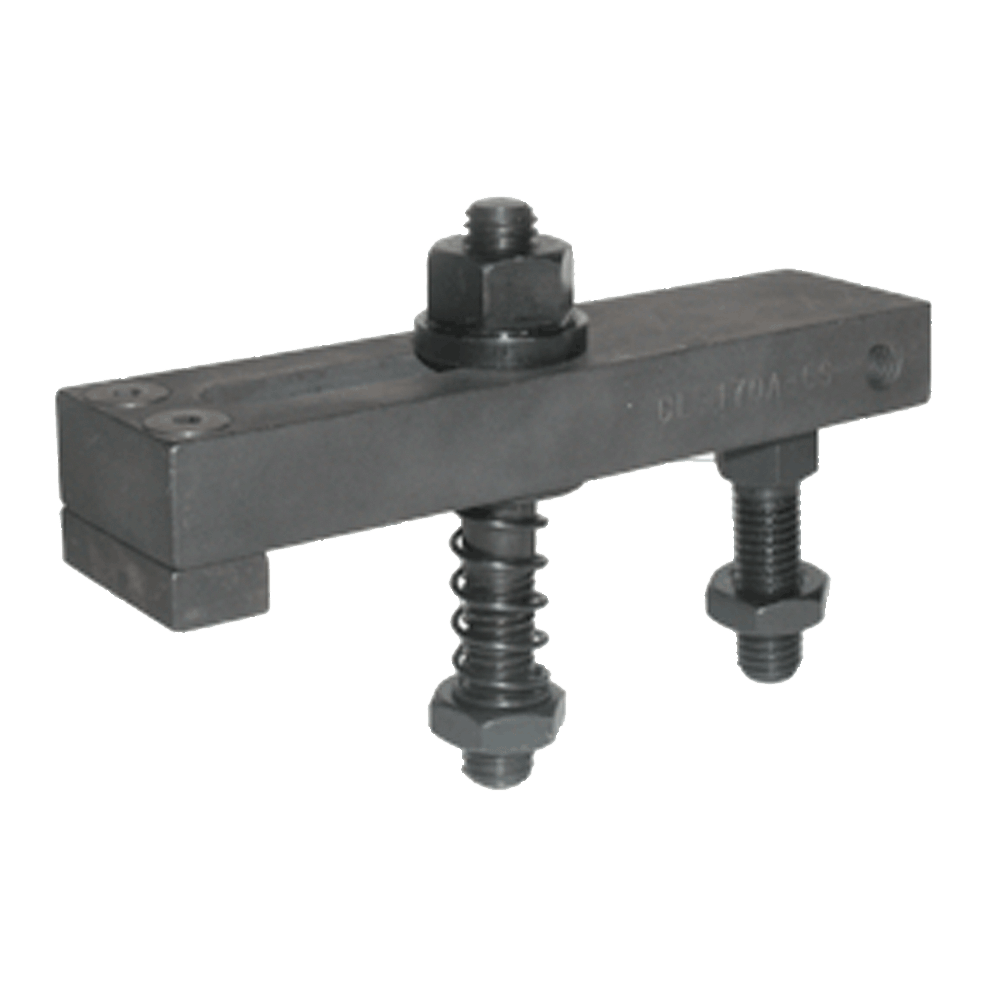

Assembly with Spherical Nut & Washer (-1)
This clamp assembly includes a Slotted-Heel Padded Clamp Strap plus the following Items:
- Spherical Nut & Washer
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Strap | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Flat-Head Socket Screws | Steel | - | Black Oxide | Yes | Yes |
| Steel Clamping Pad | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Plastic Clamping Pad | Plastic | - | - | Yes | Yes |
| Brass Clamping Pad | Brass | - | - | Yes | Yes |
Parts Specification
| A Thread (Inch) | D (Inch) | E (Inch) | F (Inch) | S (Inch) |
| 3/8-16" | 3-1/2" | 11/16" | 1-1/8" | 1-7/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
3/8-16"
