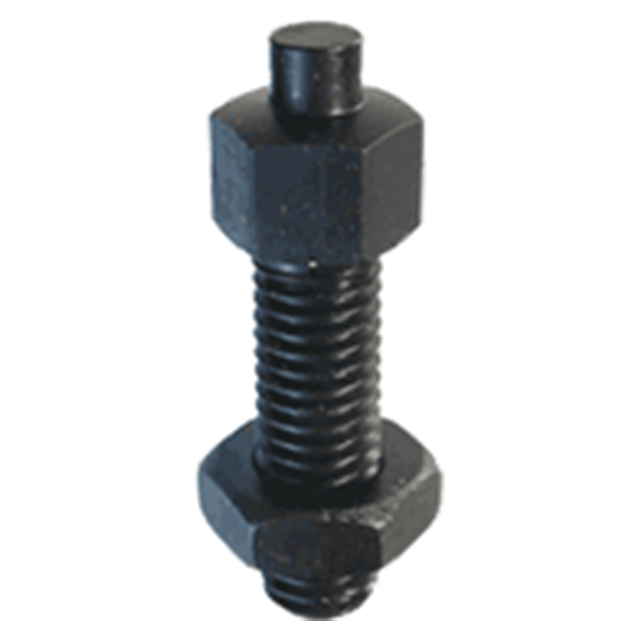

Clamp Rests
Rear support for Slotted-Heel Clamp Straps. The shoulder, which supports the Clamp Strap, has a large hex for easy adjustment and tightening. Jam Nut is included.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Rest Body | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Jam Nut | Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | C Diameter (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) |
| 5/16-18" | 7/32" | 3/16" | 5/16" | 1/2" | 2-7/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread:
5/16-18
