Double-End Clamp Straps
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

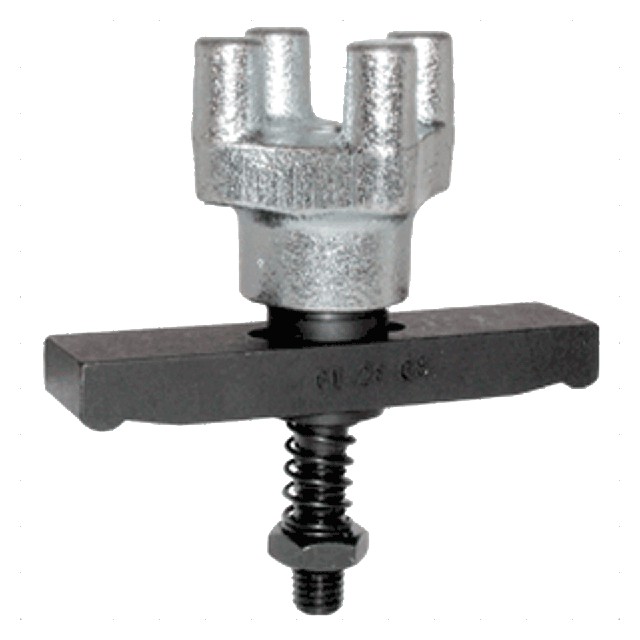

Assembly with Bar Knob & Spherical Washer (-6)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Bar Knob
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | A (Inch) | B (Inch) | C (Inch) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Bar Knob (Inch) | Spherical Washer |
| 3/4-10 | 8" | 1-3/4" | 1" | CL-39-CS | CL-13-SPG | CL-2-FW | CL-3/4-10x5.00-STUD | CL-12-JN | CL-16-BK" | CL-5-SW |
