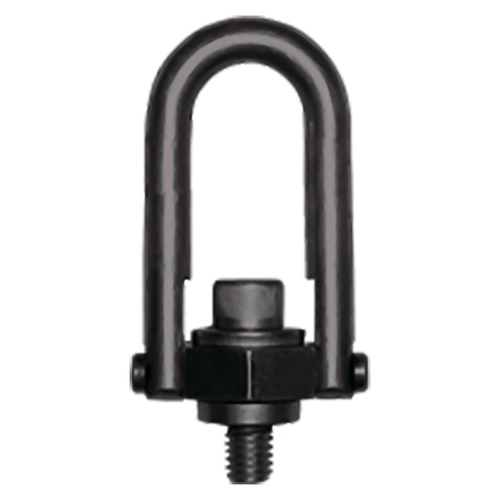

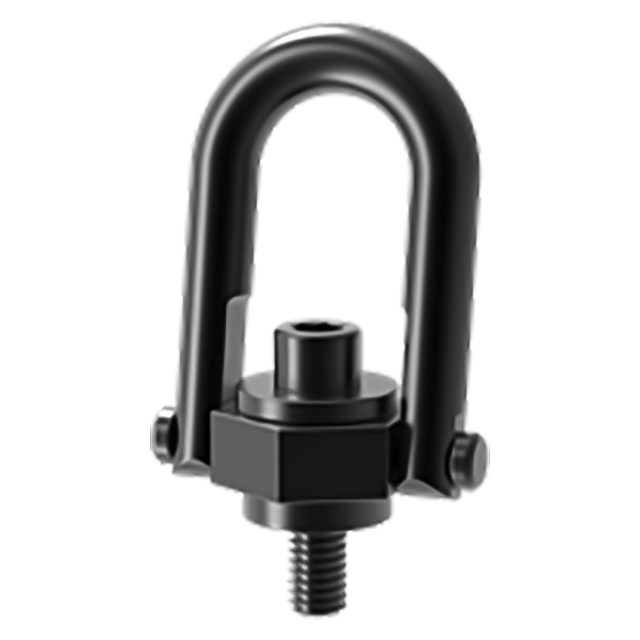

Swivel Hoist Rings
Carr Lane standard swivel hoist rings are the original safety-engineered hoist ring. These safety swivel hoist rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction. Standard swivel hoist rings feature a safety factor of 5:1. Carr Lane safety swivel hoist rings inch or metric threads in load capacities up to 100,000 lbs, many with a choice of bolt length. Black oxide finish is standard for all sizes of safety swivel hoist rings.
Application Information
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
Optional Electroless-Nickel Finish
This optional finish offers excellent corrosion and wear resistance while still providing the full load capacity of the heat-treated alloy-steel hoist rings. Electroless nickel is a hard, uniform coating that is very resistant to a wide range of chemicals, which makes these hoist rings suitable for many corrosive and marine environments.
Material
| Item | Material | Heat Treat | Finish |
| Swivel Hoist Rings (Standard Ring) | Alloy Steel | Heat Treated | Black Oxide or Electroless Nickel Finish |
Parts Specification
| Load Rating (lbs) | A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) | N Diameter (Inch) | P (Inch) | Installation Torque (ft-lbs) |
| 2500 | 1/2-13" | 1.07" | 0.93" | 3.77" | 1/2" | 0.7" | 2.4" | 1.49" | 2.58" | 1.43" | 3.31" | 1.25" | 0.2" | 28 |
