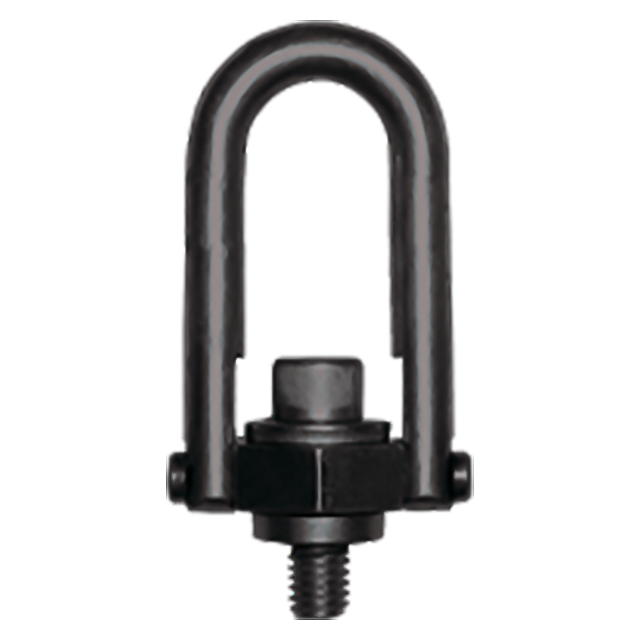

Long-ring version of the original safety-engineered hoist ring. The longer ring provides extra reach and allows using larger lifting hooks. Swivel Hoist Rings pivot 180° and swivel 360° simultaneously to allow lifting from any direction.
The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction.
| Item | Material | Heat Treat | FINISH |
| Swivel Hoist Rings (Long Ring) | Alloy Steal | Heat Treated | Black Oxide(Electroless Nickel Finish or Cadmium Plating available as a special) |
| Load Rating (lbs) | A Thread | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) | N Diameter (Inch) | P (Inch) | Installation Torque (ft-lbs) |
| 10000 | 1-8" | 1.29" | 1.71" | 8.11" | 1" | 1.4" | 4.8" | 3" | 5.14" | 2.71" | 7.38" | 2.37" | 0.24" | 230 |
