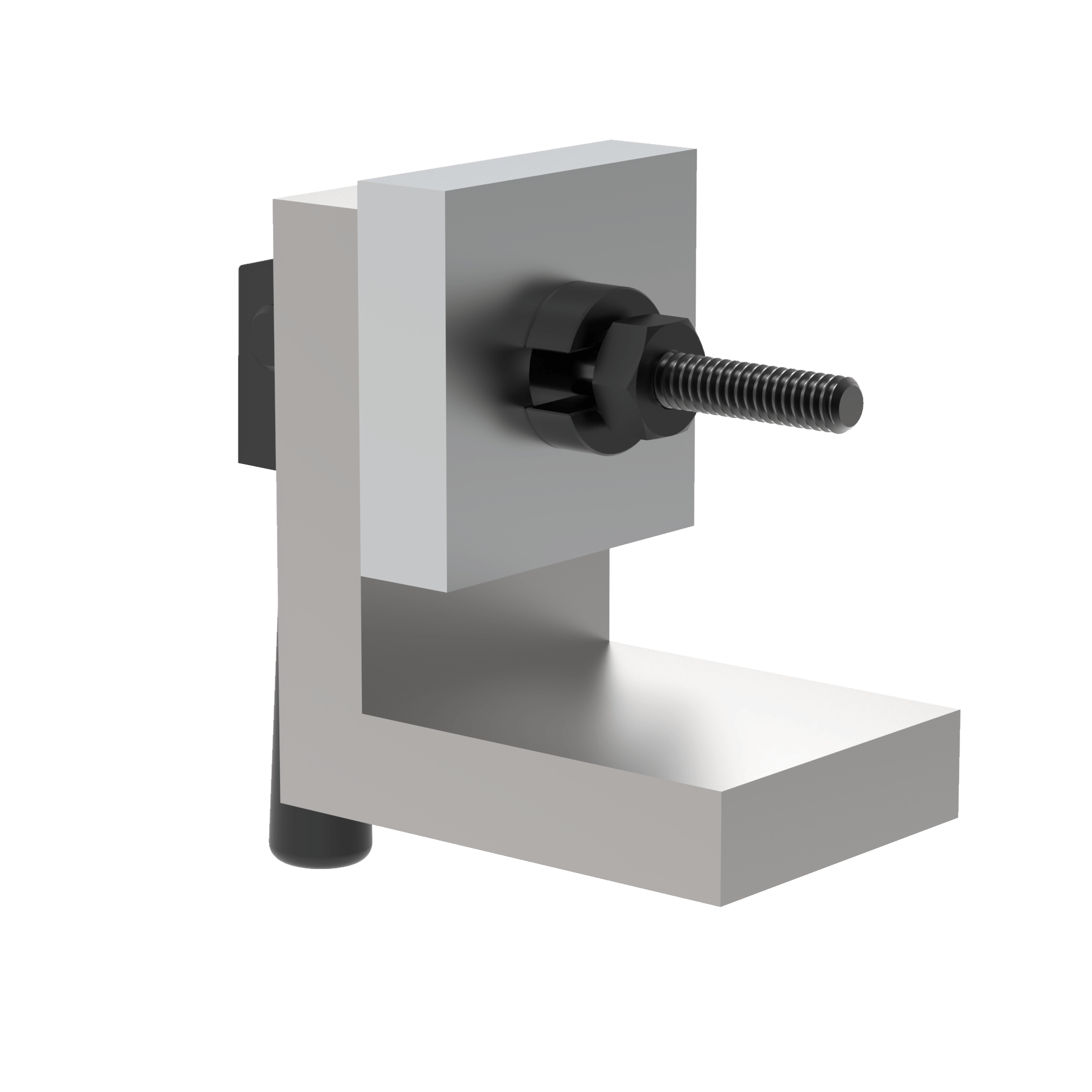

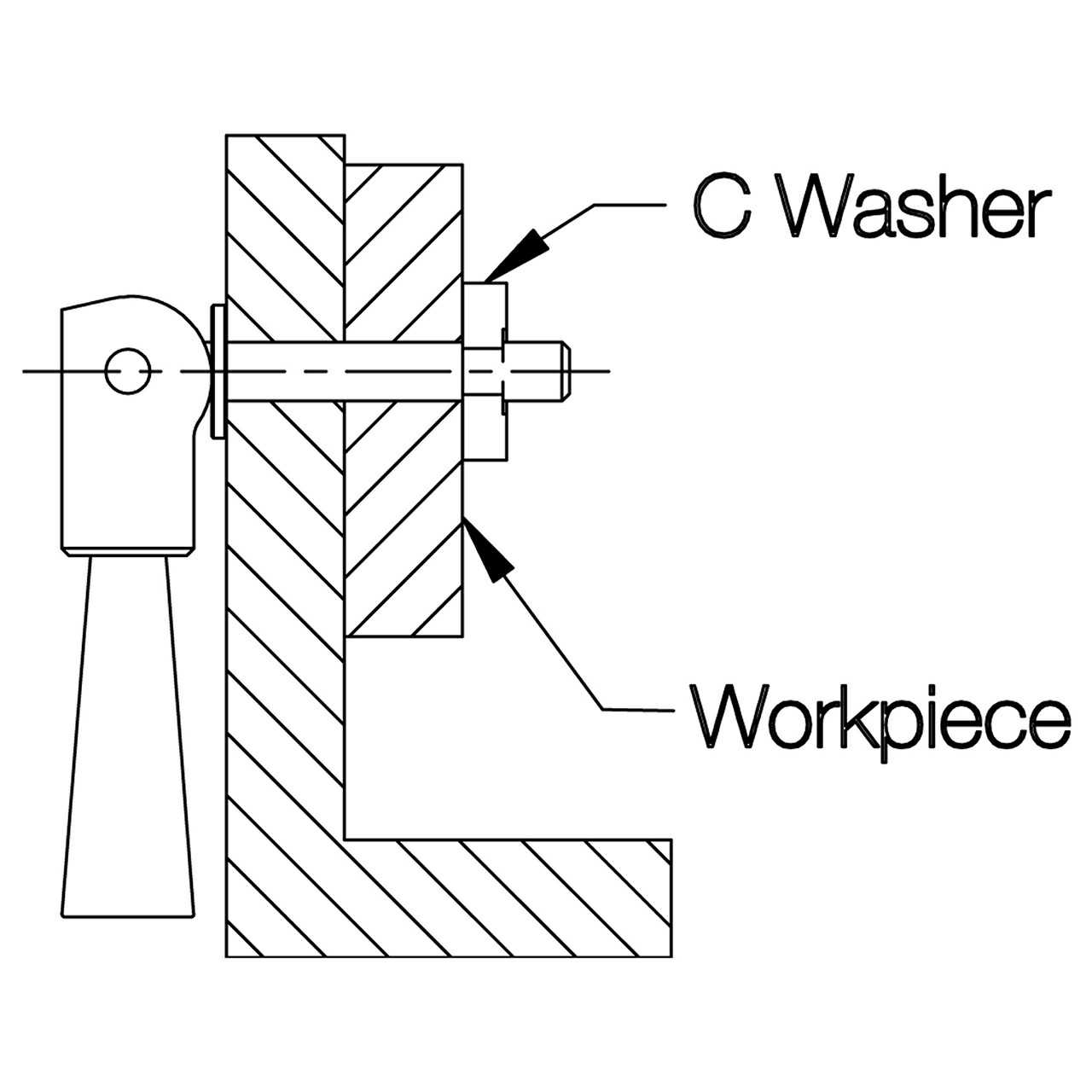

Washer that slides in and out of position for clear loading. Can be used with a nut, or by sliding it into a radial groove on a drawbar.
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes | |
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 300-Series Stainless Steel | - | Passivated | Yes | Yes | |

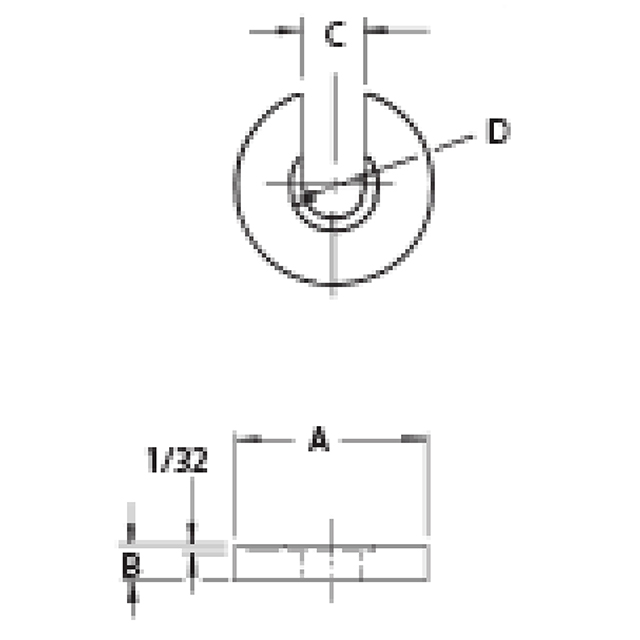

| Bolt Size | A Diameter | B | C | D Diameter |
| 1/2 or M12 | 2-1/4 | 3/8 | 17/32 | 29/32 |
