Mini-size stainless steel version of Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading.
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

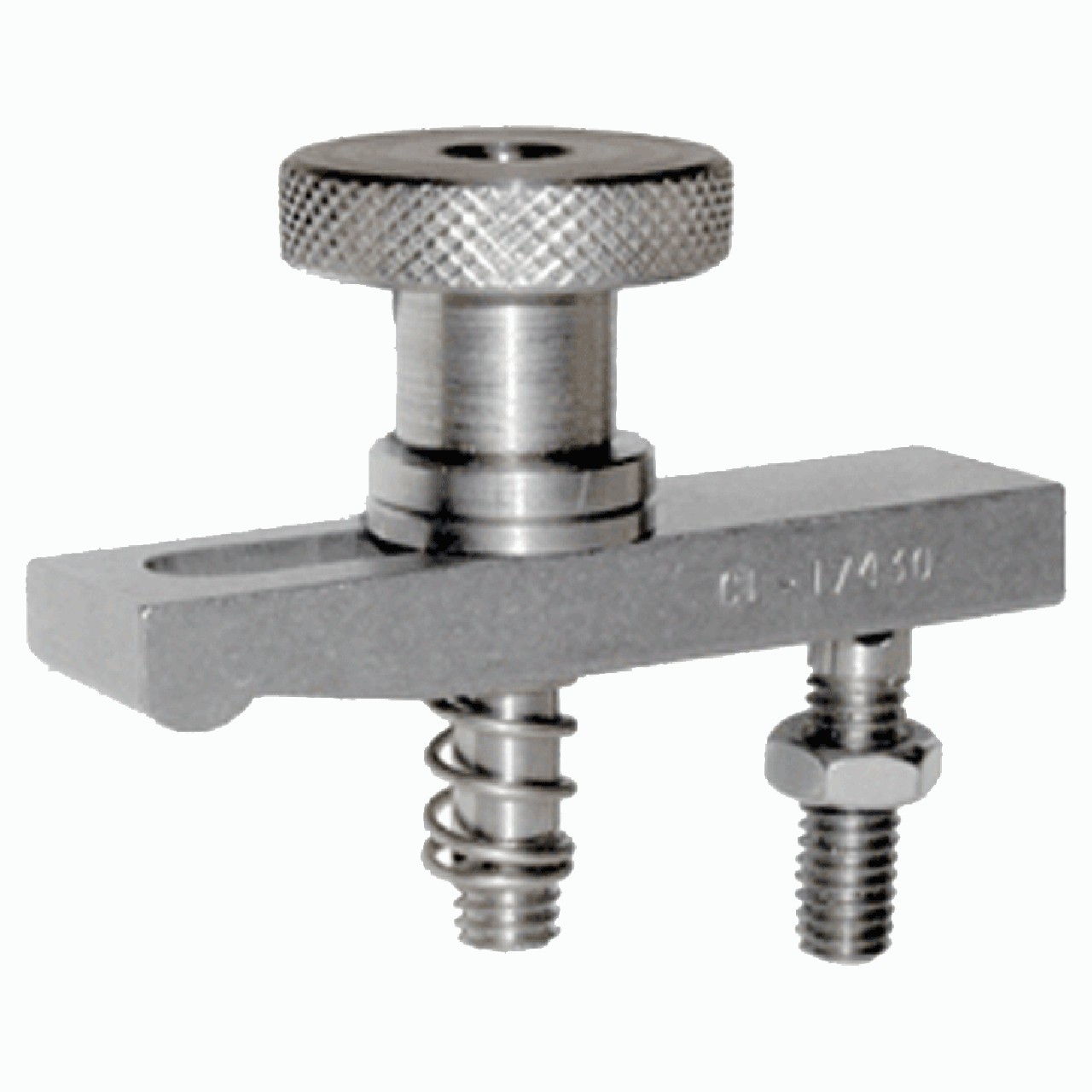

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| 5/16-18" | 2-1/2" | 3/4" | 3/8" | 1-3/32" |
