Acorn Nuts
Tall heavy-hex nut with a closed end, machined from solid steel. Acorn Nuts cap off the end of a stud to prevent snagging or damage to the threads.

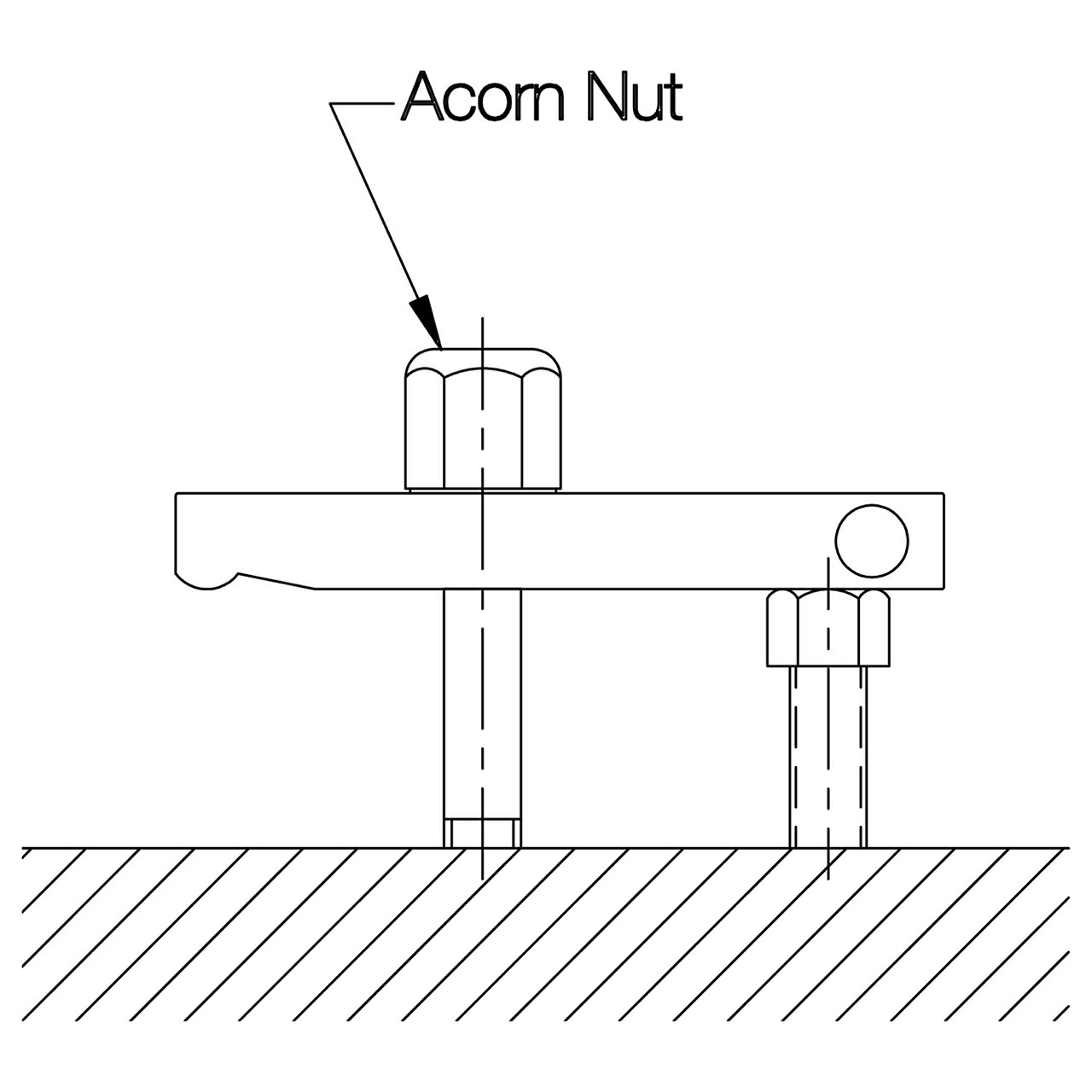

Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardens | Black Oxide | Yes | Yes |

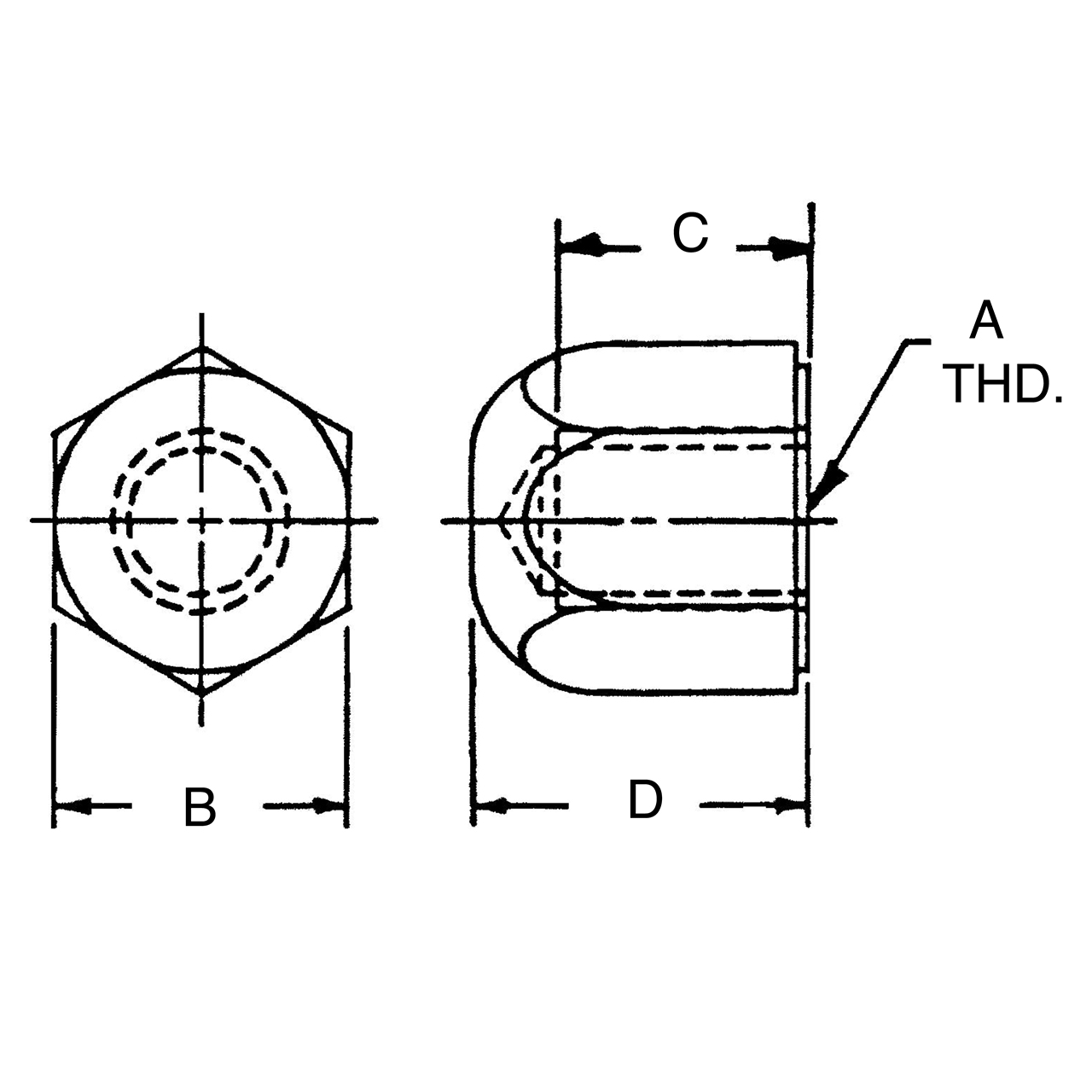

Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) |
| 5/8-11" | 1-1/16" | 13/16" | 1-3/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
