Construction-Ball Pads

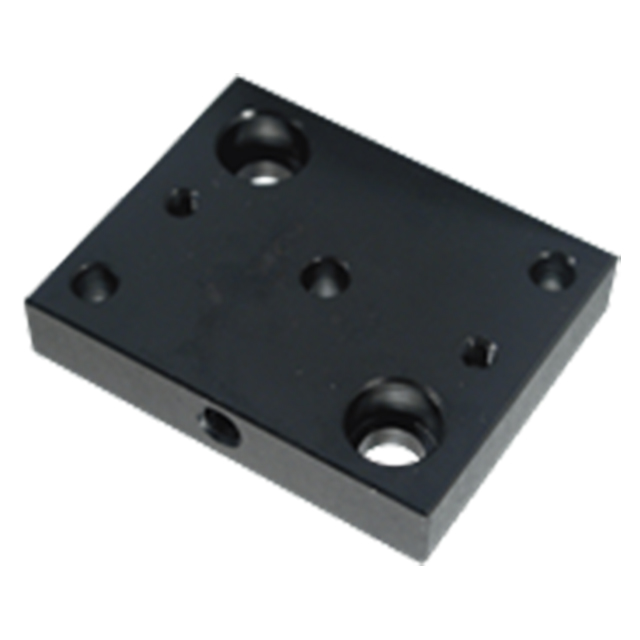

Precision rectangular pad for mounting a Construction Ball. These rectangular pads should be fastened with two socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a #10-24 setscrew (not furnished) in the crosshole. Made in USA.
Application Information
Installation
Bolt pad in position with two socket-head cap screws. After mounting, drill through the 15/64" holes and ream to 1/4" diameter, to install dowel pins for secure location.
Optional Cover
Two #10-24 tapped holes allow attaching the cover.
Material
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 17-4PH Stainless Steel | - | Passivated | Yes | Yes | |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) |
| 3/8" | 0.3750" |
