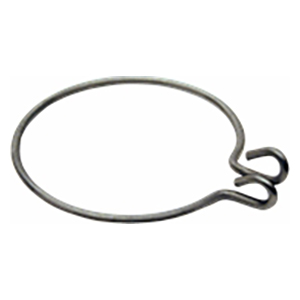

Cable Rings are used to attach a Cable Assembly to a radial groove. These wire rings must be installed in the groove before the cable is attached. Once the Cable Ring is in place, insert the cable through the ring's two end loops and fasten with a crimped Ferrule. Available to fit groove diameters from 1/8 to 1-1/2" (3 to 38mm). Can be used with our nylon-coated cable sizes #1, #2, and #3. Available in steel or stainless steel. Made in USA.

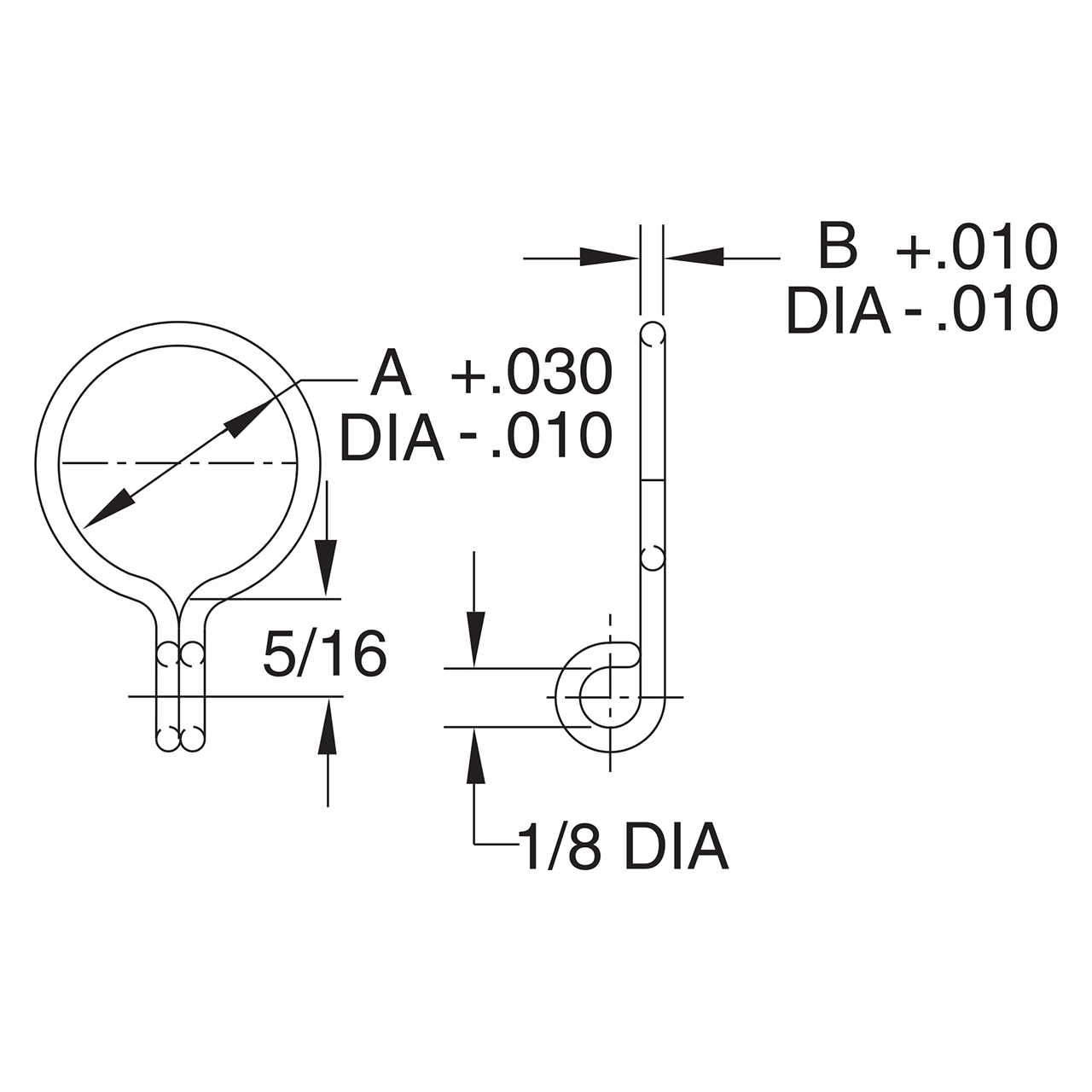

| Part Number | A DIA | B WIRE DIA (STAINLESS STEEL) |
| CL-3-SKR-PACKOF2 | 3/16 (also 4 & 5mm) | .062 |
