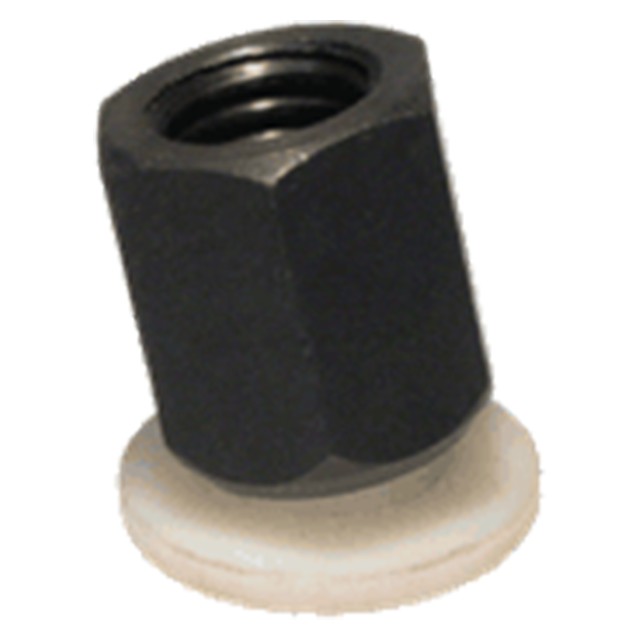

Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides a 18ยฐ total swivel angle. The Delrin pad prevents marring, but has a lower load capacity than a steel pad. Made in USA.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 1215 Steel | - | Black Oxide | Yes | Yes |
| Steel Pad | 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Delrin pad | Aluminum | - | White Delrin 500 | Yes | Yes |
| A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | H (Inch) |
| 3/8-16" | 5/8" | 0.71" | 0.29" | 7/8" | 0.06" | 0.12" | 0.91" |
