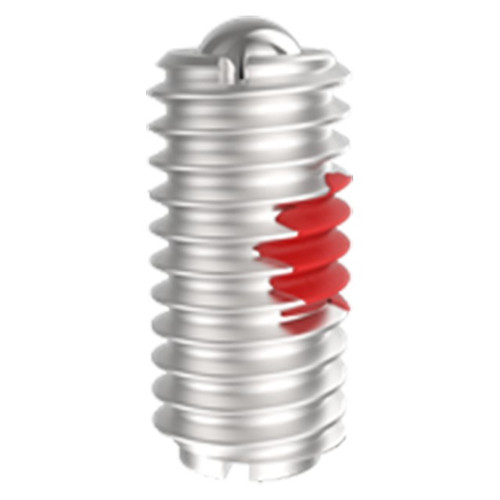

Stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Made in USA. Install and/or adjust from either end. When using the slot at the ball end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring.
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | 300-Series Stainless Steel | - | - | Yes | Yes |
| Ball | 440C Stainless | - | - | Yes | Yes |
| Spring | 302 Stainless | - | - | Yes | Yes |
| A Thread | End Force | Initial End Force (lbs) | Final End Force (lbs) | B (inch) | C (inch) | D Diameter (inch) |
| #10-32 | Medium | 1-1/2 lbs. | 3 lbs. | 33/64" | 0.025" | 0.093" |
